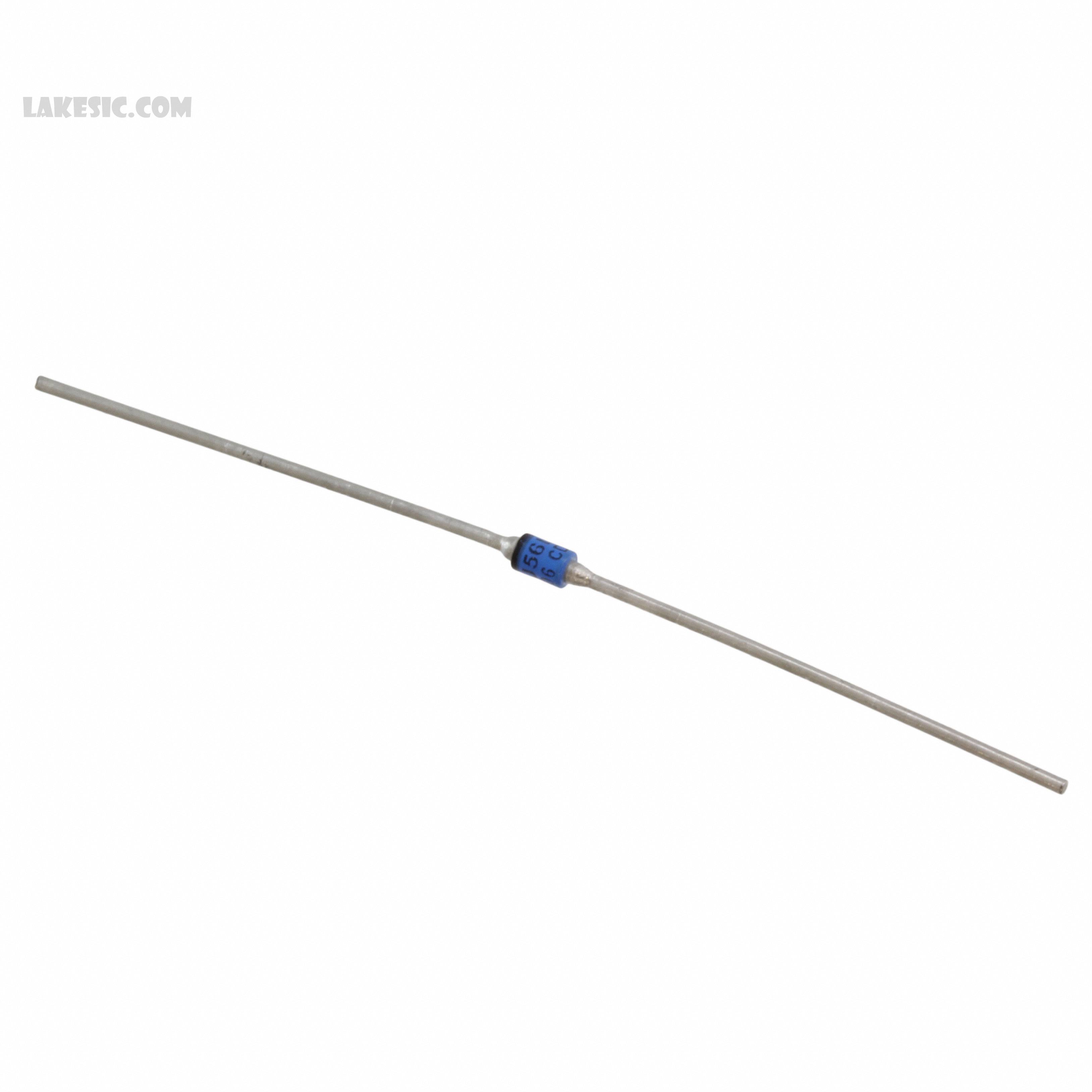

JAN1N5616

JAN1N5616

Part NumberJAN1N5616

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 400V 1A AXIAL

Datasheet1N5614 thru 22

Package / CaseA, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 400V 1A Through Hole

To learn about the specification of JAN1N5616, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N5616 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N5616.
We are offering JAN1N5616 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN1N5616 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5614 thru 22
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/427
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	500nA @ 400V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	A, Axial
Operating Temperature - Junction	-65°C ~ 200°C
