Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5615 - 1N5623
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/429
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.6V @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	500nA @ 400V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	A, Axial
Operating Temperature - Junction	-65°C ~ 175°C

CMPD914 TR	Central Semiconductor Corp, Diode Standard 75V 250mA Surface Mount SOT-23,	View
STTH30R04G	STMicroelectronics, Diode Standard 400V 30A Surface Mount D2PAK,	View
RS1JL RVG	Taiwan Semiconductor Corporation, Diode Standard 600V 800mA Surface Mount Sub SMA,	View
SDURB1040TR	SMC Diode Solutions, Diode Standard 400V Surface Mount D2PAK,	View
VS-90APS12L-M3	Vishay Semiconductor Diodes Division, Diode Standard 1200V 90A Through Hole TO-247AD,	View
S1GFS MWG	Taiwan Semiconductor Corporation, Diode Standard 400V 1A Surface Mount SOD-128,	View
UPR5E3/TR7	Microsemi Corporation, Diode Standard 50V 2.5A Surface Mount DO-216,	View
S2D R5G	Taiwan Semiconductor Corporation, Diode Standard 200V 2A Surface Mount DO-214AA (SMB),	View
ES1PC-M3/84A	Vishay Semiconductor Diodes Division, Diode Standard 150V 1A Surface Mount DO-220AA (SMP), eSMP®	View
IDW75D65D1XKSA1	Infineon Technologies, Diode Standard 650V 150A (DC) Through Hole PG-TO247-3,	View
RFN20TJ6SGC9	Rohm Semiconductor, Diode Standard 600V 20A Through Hole TO-220ACFP,	View
S3J R7G	Taiwan Semiconductor Corporation, Diode Standard 600V 3A Surface Mount DO-214AB (SMC),	View

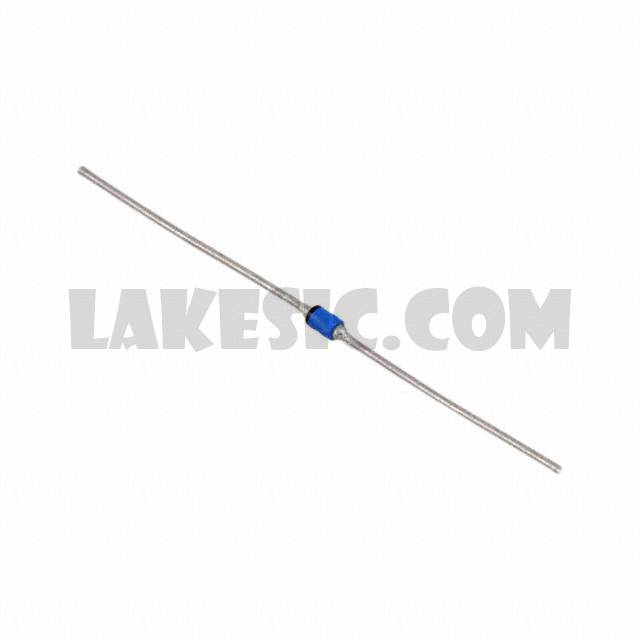

JAN1N5617
