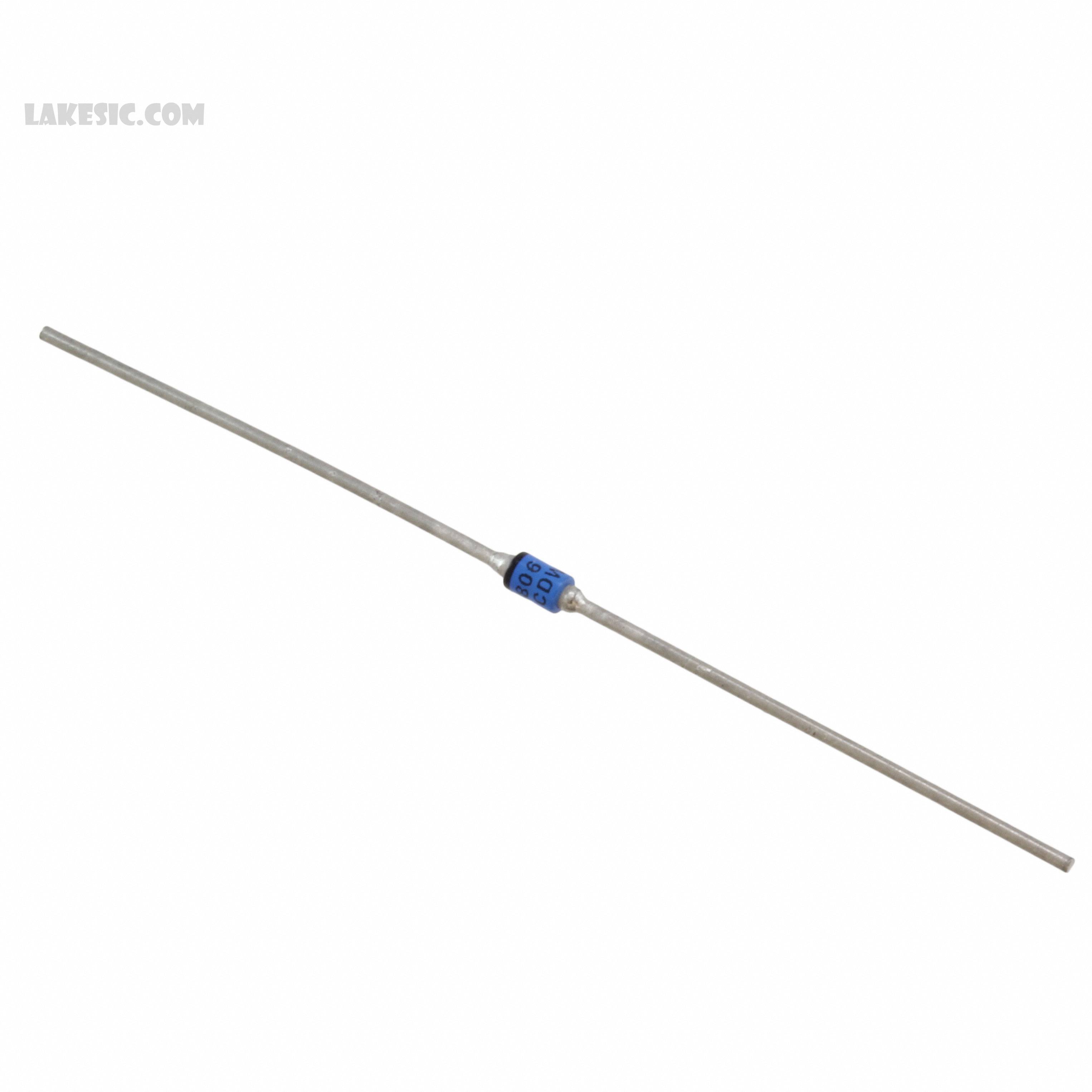

JAN1N5806
JAN1N5806
Part Number JAN1N5806
Description DIODE GEN PURP 150V 2.5A AXIAL
Package / Case A, Axial
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Diode Standard 150V 2.5A Through Hole
To learn about the specification of JAN1N5806, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N5806 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N5806.
We are offering JAN1N5806 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
JAN1N5806 - Product Attributes
Categories
Discrete Semiconductor Products / Diodes - Rectifiers - Single
Standard Package 1
Manufacturer Microsemi Corporation
Series Military, MIL-PRF-19500/477
Packaging Bulk
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) 2.5A
Voltage - Forward (Vf) (Max) @ If 975mV @ 2.5A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 1µA @ 150V
Capacitance @ Vr, F 25pF @ 10V, 1MHz
Mounting Type Through Hole
Package / Case A, Axial
Operating Temperature - Junction -65°C ~ 175°C
