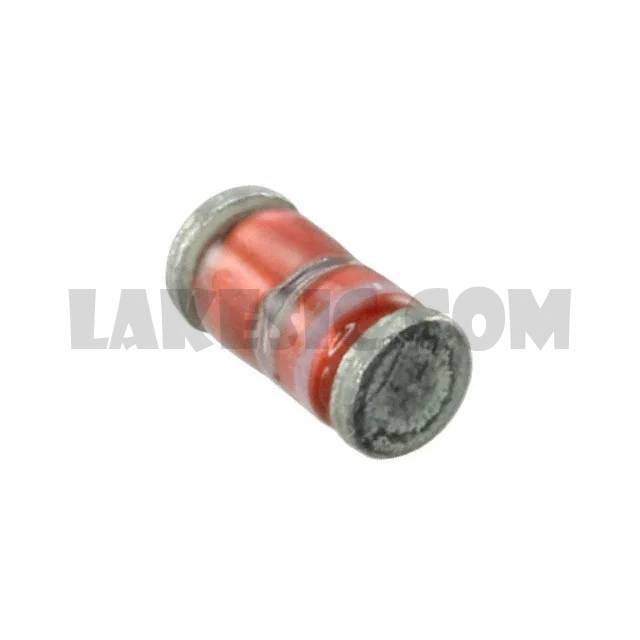

JAN1N5819UR-1

Part NumberJAN1N5819UR-1

ManufacturerMicrosemi Corporation

DescriptionDIODE SCHOTTKY 45V 1A DO213AB

Datasheet1N5818/19UR-1, 1N6761UR-1, CDLL Variants

Package / CaseDO-213AB, MELF (Glass)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 45V 1A Surface Mount DO-213AB (MELF, LL41)

To learn about the specification of JAN1N5819UR-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN1N5819UR-1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN1N5819UR-1.
We are offering JAN1N5819UR-1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN1N5819UR-1 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N5818/19UR-1, 1N6761UR-1, CDLL Variants

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/586

Packaging

Bulk

Part Status

Active

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

45V

Current - Average Rectified (Io)

Voltage - Forward (Vf) (Max) @ If

490mV @ 1A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

50µA @ 45V

Capacitance @ Vr, F

70pF @ 5V, 1MHz

Mounting Type

Surface Mount

Package / Case

DO-213AB, MELF (Glass)

Supplier Device Package

DO-213AB (MELF, LL41)

Operating Temperature - Junction

-65°C ~ 125°C
