JAN2N6299

Part NumberJAN2N6299

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP DARL 80V 8A TO-213AA

Datasheet2N6298, 2N6299

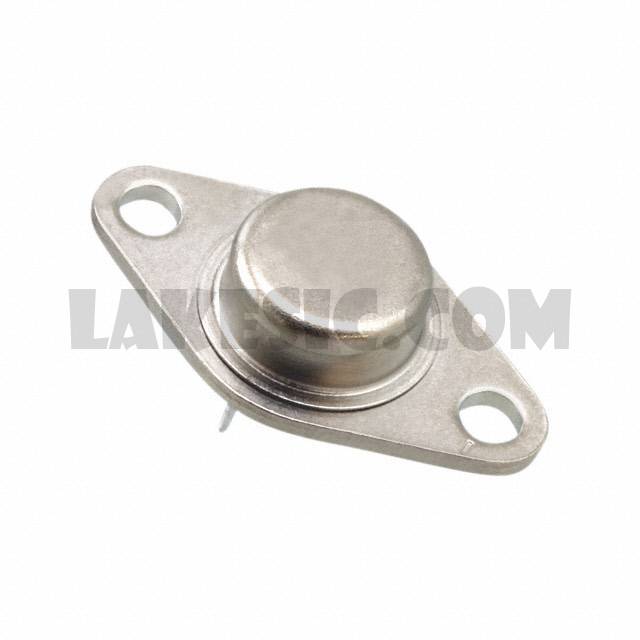

Package / CaseTO-213AA, TO-66-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 80V 8A 64W Through Hole

To learn about the specification of JAN2N6299, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JAN2N6299 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JAN2N6299.
We are offering JAN2N6299 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JAN2N6299 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N6298, 2N6299

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/540

Packaging

Bulk

Part Status

Active

Transistor Type

PNP - Darlington

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

2V @ 16mA, 4A

Current - Collector Cutoff (Max)

500µA

DC Current Gain (hFE) (Min) @ Ic, Vce

750 @ 4A, 3V

Power - Max

64W

Frequency - Transition

Operating Temperature

-65°C ~ 175°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-213AA, TO-66-2
