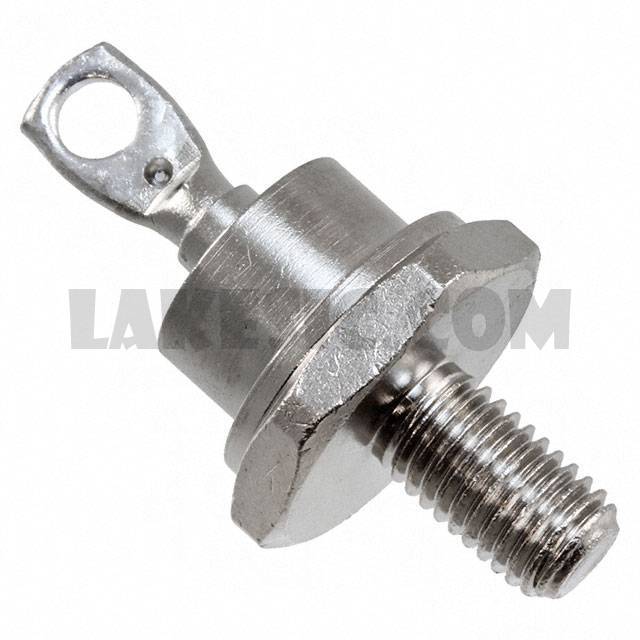

JANTX1N1184

Part NumberJANTX1N1184

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 100V 35A DO5

Datasheet1N1184,86,88,90;1N3766,68(R)

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 35A Chassis, Stud Mount DO-5

To learn about the specification of JANTX1N1184, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N1184 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N1184.
We are offering JANTX1N1184 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N1184 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N1184,86,88,90;1N3766,68(R)

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/297

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

100V

Current - Average Rectified (Io)

35A

Voltage - Forward (Vf) (Max) @ If

1.4V @ 110A

Speed

Standard Recovery >500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

10µA @ 100V

Capacitance @ Vr, F

Mounting Type

Chassis, Stud Mount

Package / Case

DO-203AB, DO-5, Stud

Supplier Device Package

DO-5

Operating Temperature - Junction

-65°C ~ 175°C
