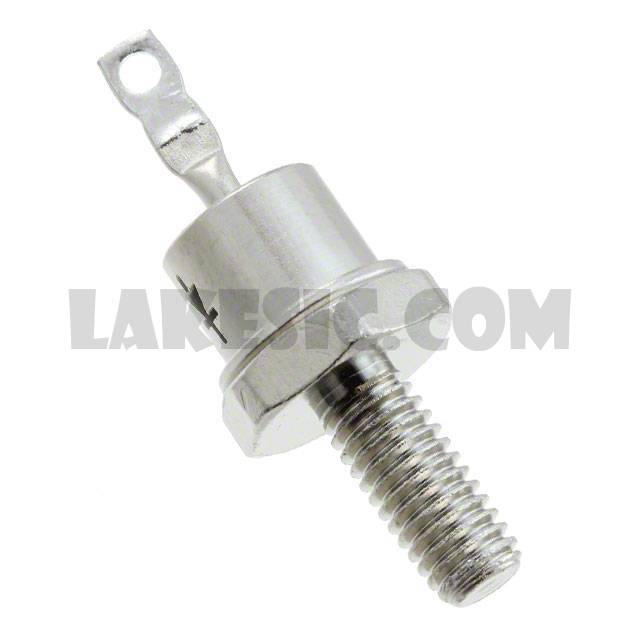

JANTX1N3671A

Part NumberJANTX1N3671A

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 800V 12A DO203AA

Datasheet1N1202,4,6A(AR),3671,73A(AR)

Package / CaseDO-203AA, DO-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 800V 12A Stud Mount DO-203AA

To learn about the specification of JANTX1N3671A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N3671A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N3671A.
We are offering JANTX1N3671A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N3671A - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N1202,4,6A(AR),3671,73A(AR)

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/260

Packaging

Bulk

Part Status

Active

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

800V

Current - Average Rectified (Io)

12A

Voltage - Forward (Vf) (Max) @ If

2.3V @ 240A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

5µA @ 800V

Capacitance @ Vr, F

Mounting Type

Stud Mount

Package / Case

DO-203AA, DO-4, Stud

Supplier Device Package

DO-203AA

Operating Temperature - Junction

-65°C ~ 150°C
