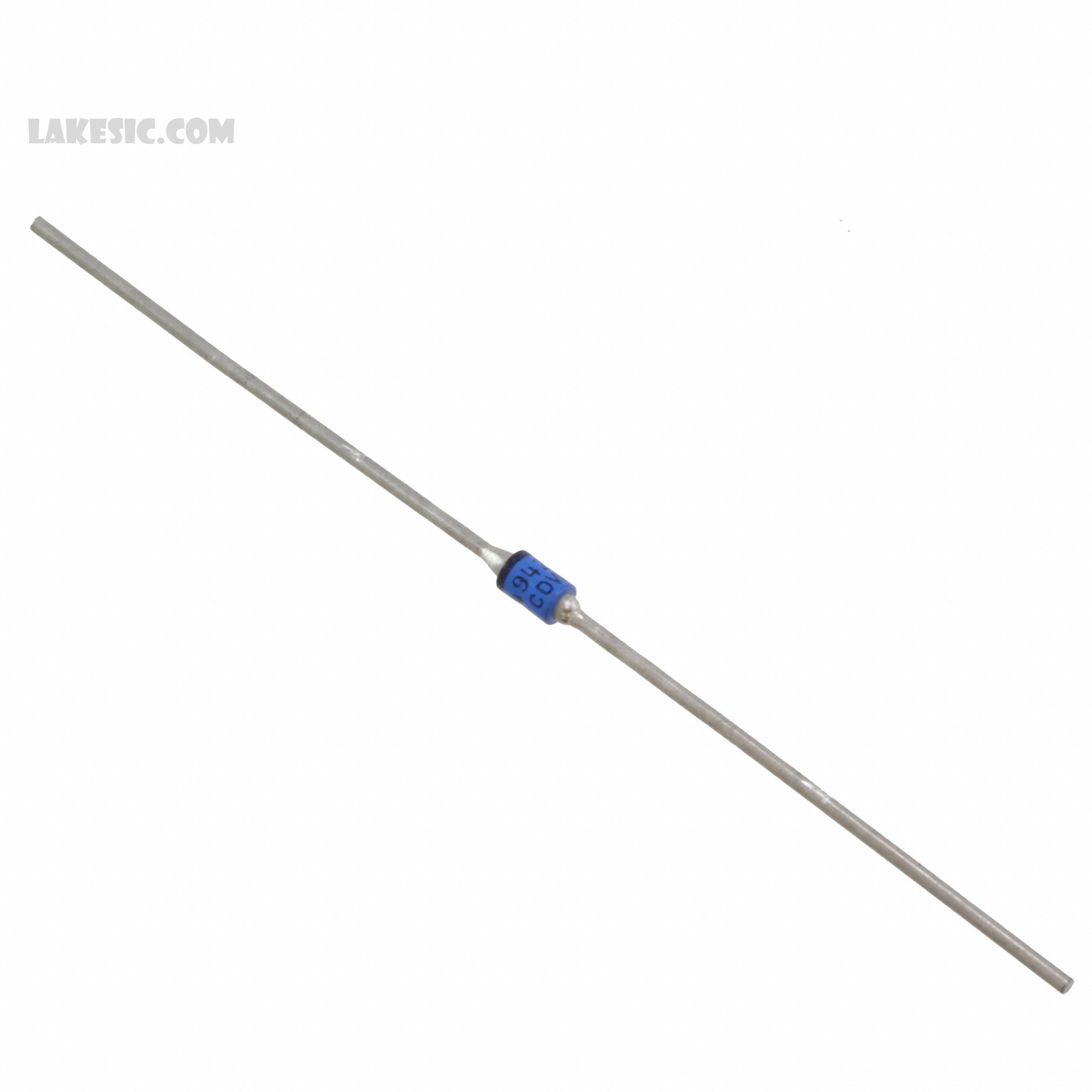

JANTX1N4942

JANTX1N4942

Part NumberJANTX1N4942

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 1A AXIAL

Datasheet1N4942-46

Package / CaseA, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 1A Through Hole A, Axial

To learn about the specification of JANTX1N4942, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N4942 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N4942.
We are offering JANTX1N4942 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N4942 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N4942-46
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/359
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	1µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	A, Axial
Supplier Device Package	A, Axial
Operating Temperature - Junction	-65°C ~ 175°C
