Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5615US thru 1N5623US
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/429
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.6V @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	500µA @ 400V
Capacitance @ Vr, F	35pF @ 12V, 1MHz
Mounting Type	Surface Mount

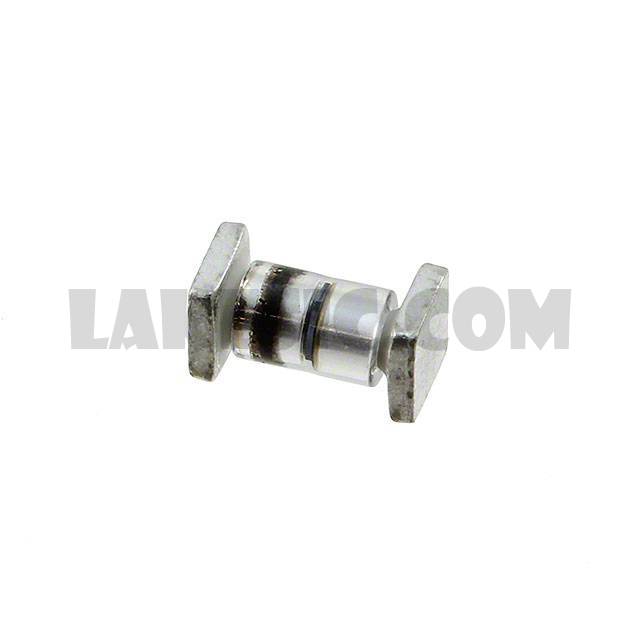

Package / Case	SQ-MELF, A
Supplier Device Package	D-5A
Operating Temperature - Junction	-65°C ~ 175°C
