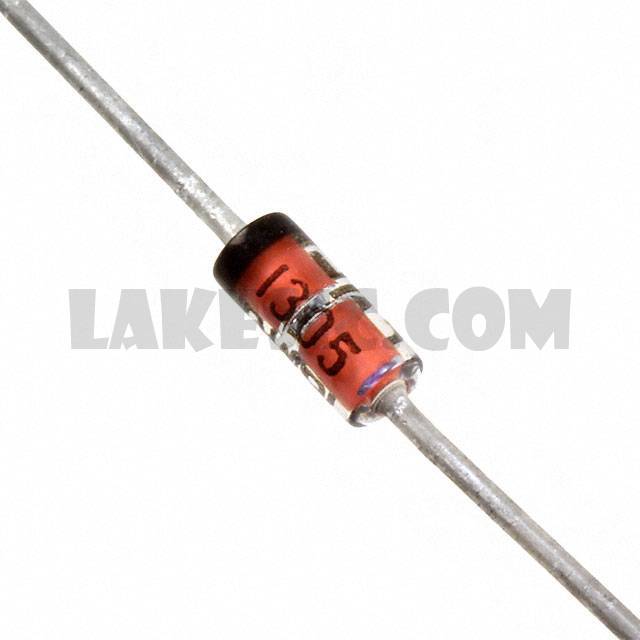

JANTX1N5712-1

Part NumberJANTX1N5712-1

ManufacturerMicrosemi Corporation

DescriptionDIODE SCHOTTKY 20V 750MA DO35

Datasheet1N571x-1,1N685x-1,DSB2810,5712

Package / CaseDO-204AH, DO-35, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 20V 750mA Through Hole DO-35 (DO-204AH)

To learn about the specification of JANTX1N5712-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX1N5712-1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX1N5712-1.
We are offering JANTX1N5712-1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX1N5712-1 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

1N571x-1,1N685x-1,DSB2810,5712

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/444

Packaging

Bulk

Part Status

Active

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

20V

Current - Average Rectified (Io)

750mA

Voltage - Forward (Vf) (Max) @ If

1V @ 35mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

150nA @ 16V

Capacitance @ Vr, F

2pF @ 0V, 1MHz

Mounting Type

Through Hole

Package / Case

DO-204AH, DO-35, Axial

Supplier Device Package

DO-35 (DO-204AH)

Operating Temperature - Junction

-65°C ~ 150°C
