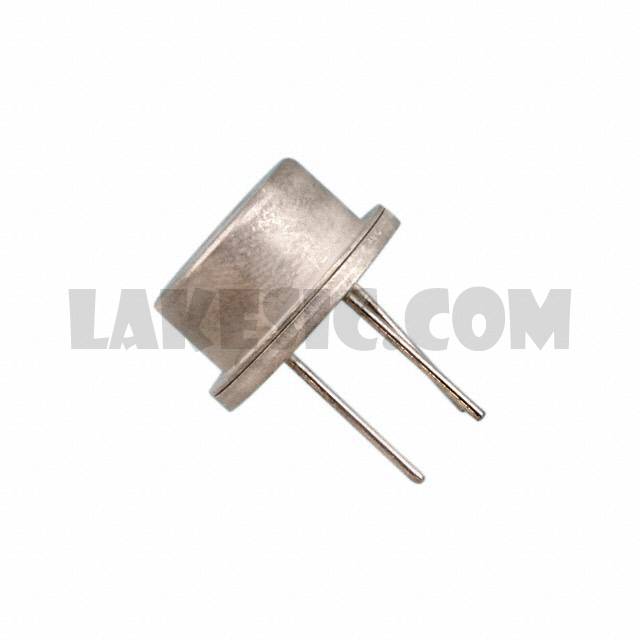

JANTX2N1485

Part NumberJANTX2N1485

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 40V 3A TO-8

Datasheet2N1483 - 2N1486

Package / CaseTO-233AA, TO-8-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 40V 3A 1.75W Through Hole TO-8

To learn about the specification of JANTX2N1485, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N1485 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N1485.
We are offering JANTX2N1485 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N1485 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N1483 - 2N1486

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/180

Packaging

Bulk

Part Status

Active

Transistor Type

NPN

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

40V

Vce Saturation (Max) @ Ib, Ic

750mV @ 40mA, 750mA

Current - Collector Cutoff (Max)

15µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

35 @ 750mA, 4V

Power - Max

1.75W

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-233AA, TO-8-3 Metal Can

Supplier Device Package

TO-8
