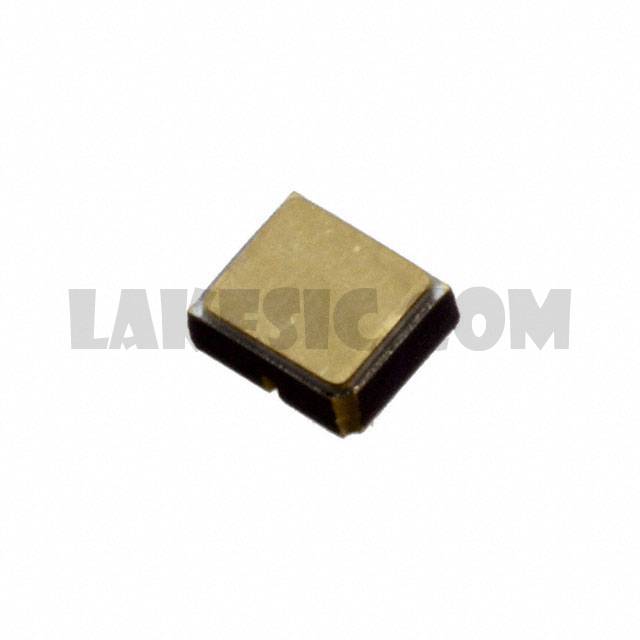

JANTX2N2369AUB

Part NumberJANTX2N2369AUB

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 15V

Datasheet2N2369A, 2N4449

Package / Case3-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 15V 400mW Surface Mount UB

To learn about the specification of JANTX2N2369AUB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N2369AUB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N2369AUB.
We are offering JANTX2N2369AUB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N2369AUB - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N2369A, 2N4449

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/317

Packaging

Bulk

Part Status

Active

Transistor Type

NPN

Voltage - Collector Emitter Breakdown (Max)

15V

Vce Saturation (Max) @ Ib, Ic

450mV @ 10mA, 100mA

Current - Collector Cutoff (Max)

400nA

DC Current Gain (hFE) (Min) @ Ic, Vce

20 @ 100mA, 1V

Power - Max

400mW

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Surface Mount

Package / Case

3-SMD, No Lead

Supplier Device Package
