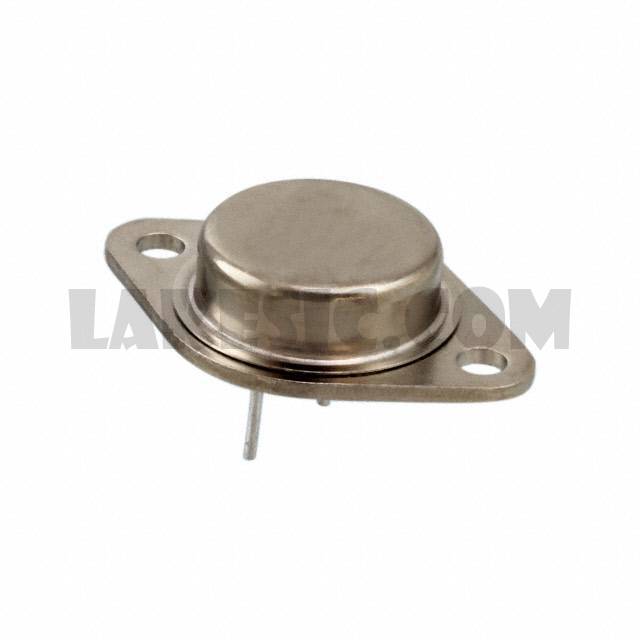

JANTX2N3055

Part NumberJANTX2N3055

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 70V 15A TO-3

Datasheet2N3055

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 70V 15A 6W Through Hole TO-3 (TO-204AA)

To learn about the specification of JANTX2N3055, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N3055 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N3055.
We are offering JANTX2N3055 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N3055 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N3055

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/407

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN

Current - Collector (Ic) (Max)

15A

Voltage - Collector Emitter Breakdown (Max)

70V

Vce Saturation (Max) @ Ib, Ic

2V @ 3.3A, 10A

Current - Collector Cutoff (Max)

1mA

DC Current Gain (hFE) (Min) @ Ic, Vce

20 @ 4A, 4V

Power - Max

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-3 (TO-204AA)
