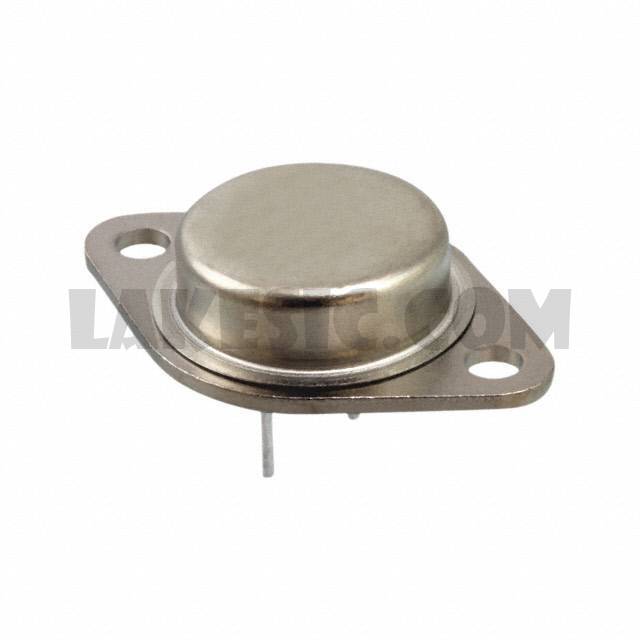

JANTX2N3716

Part NumberJANTX2N3716

ManufacturerM/A-Com Technology Solutions

DescriptionDIODE

Datasheet2N3715,16~

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 10A 5W Through Hole TO-204AA (TO-3)

To learn about the specification of JANTX2N3716, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N3716 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N3716.
We are offering JANTX2N3716 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N3716 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N3715,16~

Standard Package

Manufacturer

M/A-Com Technology Solutions

Series

Military, MIL-PRF-19500/408

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Transistor Type

NPN

Current - Collector (Ic) (Max)

10A

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

2.5V @ 2A, 10A

Current - Collector Cutoff (Max)

10µA

DC Current Gain (hFE) (Min) @ Ic, Vce

30 @ 3A, 2V

Power - Max

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-204AA (TO-3)
