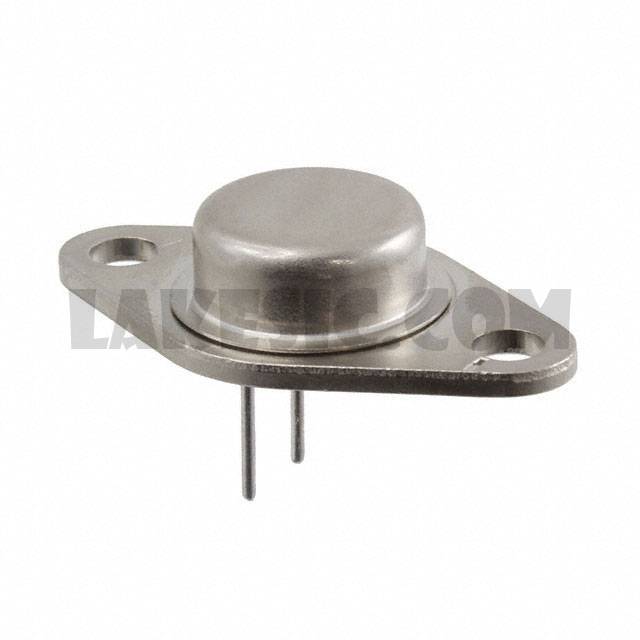

JANTX2N3740

Part NumberJANTX2N3740

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP 60V 4A TO-66

Datasheet2N3740, 2N3741

Package / CaseTO-213AA, TO-66-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 60V 4A 25W Through Hole

To learn about the specification of JANTX2N3740, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N3740 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N3740.
We are offering JANTX2N3740 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N3740 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N3740, 2N3741

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/441

Packaging

Bulk

Part Status

Active

Transistor Type

PNP

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

60V

Vce Saturation (Max) @ Ib, Ic

600mV @ 125mA, 1A

Current - Collector Cutoff (Max)

10µA

DC Current Gain (hFE) (Min) @ Ic, Vce

30 @ 250mA, 1V

Power - Max

25W

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-213AA, TO-66-2
