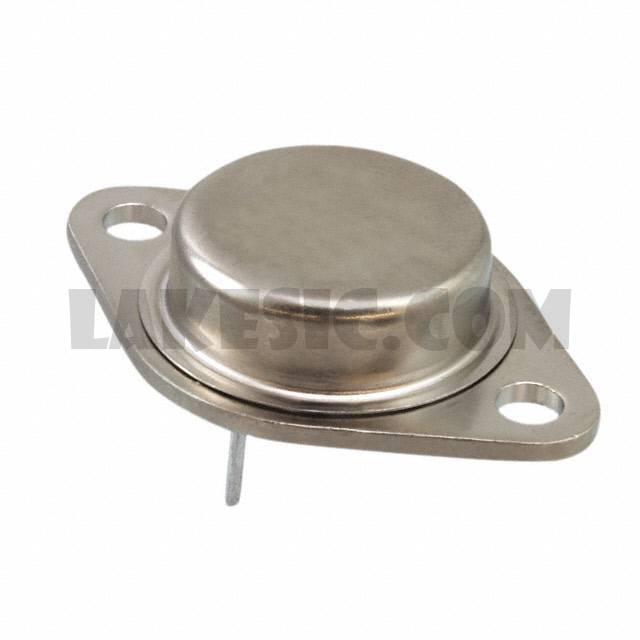

JANTX2N3772

Part NumberJANTX2N3772

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 60V 20A TO-3

Datasheet2N3771,2N3772

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 60V 20A 6W Through Hole TO-3

To learn about the specification of JANTX2N3772, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N3772 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N3772.
We are offering JANTX2N3772 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N3772 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N3771,2N3772

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/518

Packaging

Bulk

Part Status

Active

Transistor Type

NPN

Current - Collector (Ic) (Max)

20A

Voltage - Collector Emitter Breakdown (Max)

60V

Vce Saturation (Max) @ Ib, Ic

4V @ 4A, 20A

Current - Collector Cutoff (Max)

5mA

DC Current Gain (hFE) (Min) @ Ic, Vce

15 @ 10A, 4V

Power - Max

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-3
