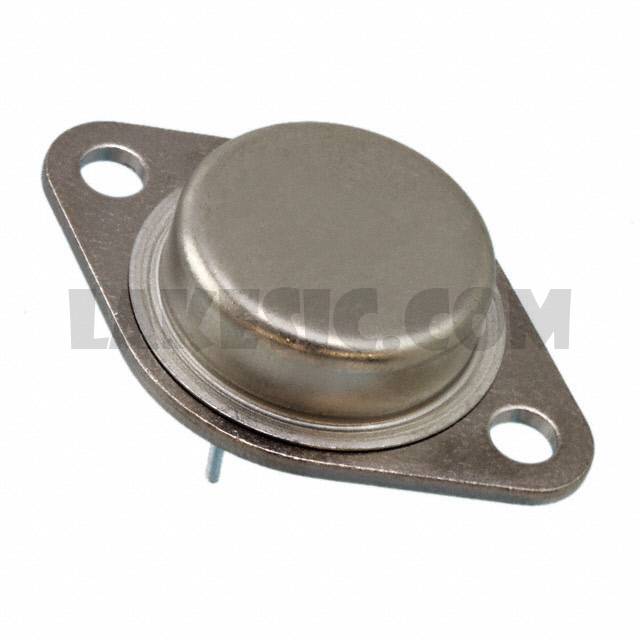

JANTX2N5303

Part NumberJANTX2N5303

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 80V 20A TO-3

DatasheetJANTX(V) 2N5302-03

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 20A 5W Through Hole TO-3 (TO-204AA)

To learn about the specification of JANTX2N5303, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N5303 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N5303.
We are offering JANTX2N5303 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N5303 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

JANTX(V) 2N5302-03

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/456

Packaging

Bulk

Part Status

Active

Transistor Type

NPN

Current - Collector (Ic) (Max)

20A

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

2V @ 4A, 20A

Current - Collector Cutoff (Max)

10µA

DC Current Gain (hFE) (Min) @ Ic, Vce

15 @ 10A, 2V

Power - Max

Frequency - Transition

Operating Temperature

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-3 (TO-204AA)
