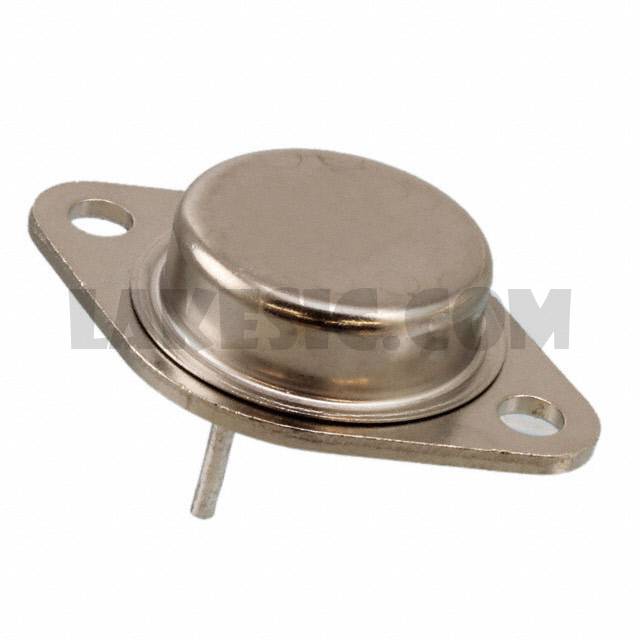

JANTX2N6274

Part NumberJANTX2N6274

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 100V 50A TO-3

Datasheet2N6274,2N6277

Package / CaseTO-204AE

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 100V 50A 250W Through Hole TO-3

To learn about the specification of JANTX2N6274, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N6274 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N6274.
We are offering JANTX2N6274 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N6274 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N6274,2N6277

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/514

Packaging

Bulk

Part Status

Active

Transistor Type

NPN

Current - Collector (Ic) (Max)

50A

Voltage - Collector Emitter Breakdown (Max)

100V

Vce Saturation (Max) @ Ib, Ic

3V @ 10A, 50A

Current - Collector Cutoff (Max)

50µA

DC Current Gain (hFE) (Min) @ Ic, Vce

30 @ 20A, 4V

Power - Max

250W

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AE

Supplier Device Package

TO-3
