JANTX2N6284

Part NumberJANTX2N6284

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN DARL 100V 20A TO-3

Datasheet2N6283,2N6284

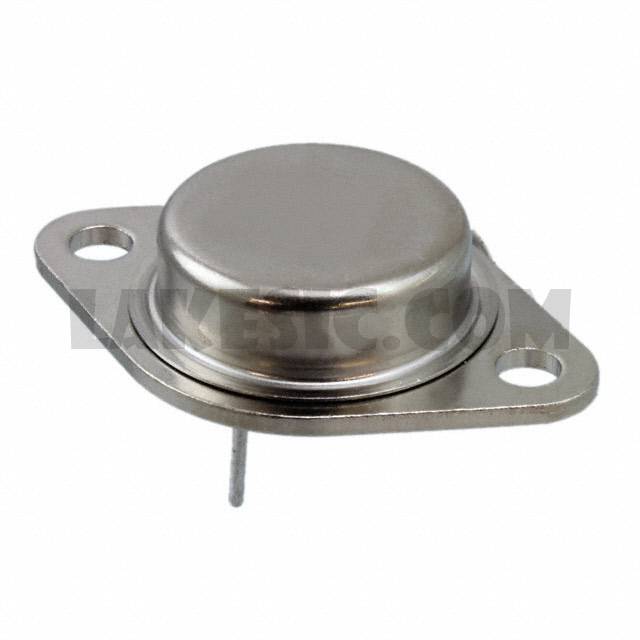

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN - Darlington 100V 20A 175W Through Hole TO-204AA (TO-3)

To learn about the specification of JANTX2N6284, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N6284 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N6284.
We are offering JANTX2N6284 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N6284 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N6283,2N6284

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/504

Packaging

Bulk

Part Status

Active

Transistor Type

NPN - Darlington

Current - Collector (Ic) (Max)

20A

Voltage - Collector Emitter Breakdown (Max)

100V

Vce Saturation (Max) @ Ib, Ic

3V @ 200mA, 20A

Current - Collector Cutoff (Max)

1mA

DC Current Gain (hFE) (Min) @ Ic, Vce

1250 @ 10A, 3V

Power - Max

175W

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-204AA (TO-3)
