JANTX2N6287

Part NumberJANTX2N6287

ManufacturerM/A-Com Technology Solutions

DescriptionDIODE

Datasheet2N6286, 2N6287~

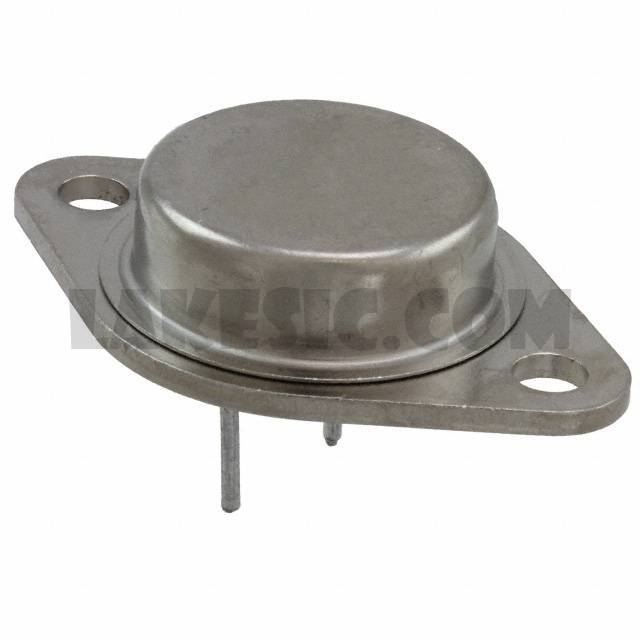

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 100V 20A 175W Through Hole TO-3

To learn about the specification of JANTX2N6287, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N6287 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N6287.
We are offering JANTX2N6287 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N6287 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N6286, 2N6287~

Standard Package

Manufacturer

M/A-Com Technology Solutions

Series

Military, MIL-PRF-19500/505

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Transistor Type

PNP - Darlington

Current - Collector (Ic) (Max)

20A

Voltage - Collector Emitter Breakdown (Max)

100V

Vce Saturation (Max) @ Ib, Ic

3V @ 200mA, 20A

Current - Collector Cutoff (Max)

1mA

DC Current Gain (hFE) (Min) @ Ic, Vce

1000 @ 6A, 3V

Power - Max

175W

Frequency - Transition

Operating Temperature

-65°C ~ 175°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-3
