JANTX2N6650

Part NumberJANTX2N6650

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP DARL 80V 10A TO-3

Datasheet2N6648-2N6650

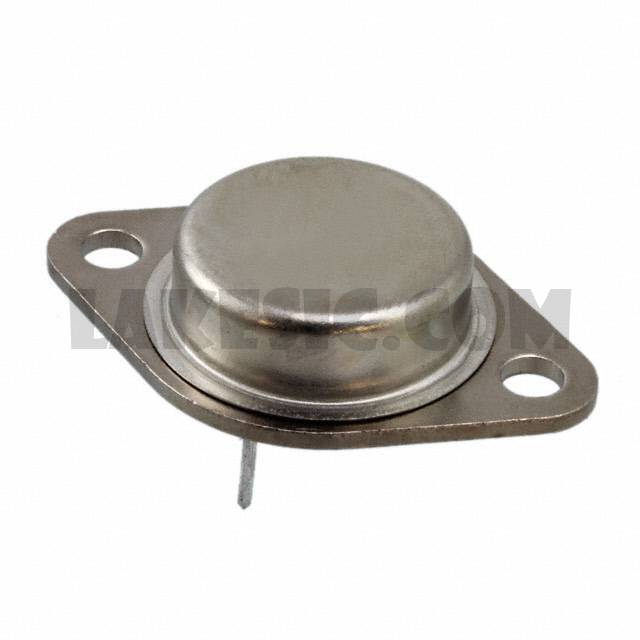

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 80V 10A 5W Through Hole TO-204AA (TO-3)

To learn about the specification of JANTX2N6650, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N6650 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N6650.
We are offering JANTX2N6650 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N6650 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N6648-2N6650

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/527

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Transistor Type

PNP - Darlington

Current - Collector (Ic) (Max)

10A

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

3V @ 100µA, 10A

Current - Collector Cutoff (Max)

1mA

DC Current Gain (hFE) (Min) @ Ic, Vce

1000 @ 5A, 3V

Power - Max

Frequency - Transition

Operating Temperature

-65°C ~ 175°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-204AA (TO-3)
