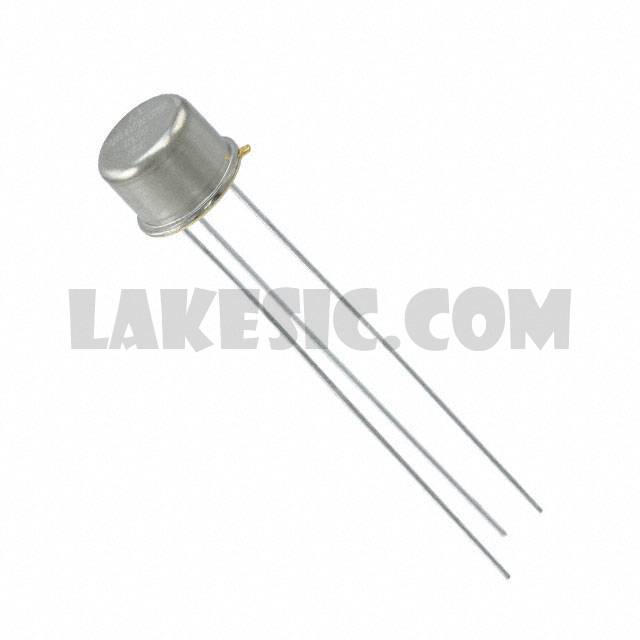

JANTXV2N2329A

Part NumberJANTXV2N2329A

ManufacturerMicrosemi Corporation

DescriptionDIODE SILICON CTRL TO-5

Datasheet2N2323 , 24, 26, 28, 29(A,AS,S)

Package / CaseTO-205AA, TO-5-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR 400V Sensitive Gate Through Hole TO-5

To learn about the specification of JANTXV2N2329A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTXV2N2329A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTXV2N2329A.
We are offering JANTXV2N2329A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTXV2N2329A - Product Attributes

Categories

Discrete Semiconductor Products / Thyristors - SCRs

Datasheet

2N2323 , 24, 26, 28, 29(A,AS,S)

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/276

Packaging

Bulk

Part Status

Obsolete

Voltage - Off State

400V

Voltage - Gate Trigger (Vgt) (Max)

600mV

Current - Gate Trigger (Igt) (Max)

20µA

Current - On State (It (AV)) (Max)

220mA

Current - Hold (Ih) (Max)

2mA

Current - Non Rep. Surge 50, 60Hz (Itsm)

SCR Type

Sensitive Gate

Operating Temperature

-65°C ~ 125°C

Mounting Type

Through Hole

Package / Case

TO-205AA, TO-5-3 Metal Can

Supplier Device Package

TO-5
