JANTXV2N3810

Part NumberJANTXV2N3810

ManufacturerMicrosemi Corporation

DescriptionTRANS 2PNP 60V 0.05A TO78

Datasheet2N3810(L,U), 2N3811(L,U)

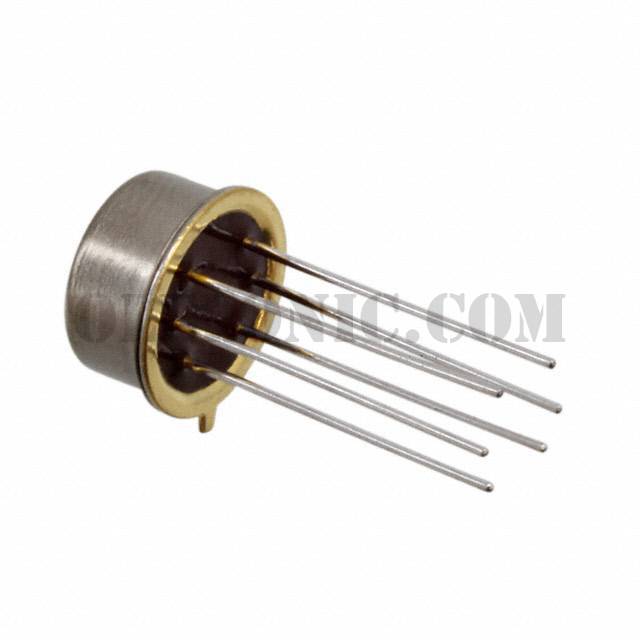

Package / CaseTO-78-6 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 PNP (Dual) 60V 50mA 350mW Through Hole TO-78-6

To learn about the specification of JANTXV2N3810, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTXV2N3810 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTXV2N3810.
We are offering JANTXV2N3810 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTXV2N3810 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	2N3810(L,U), 2N3811(L,U)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/336
Packaging	Bulk
Part Status	Active
Transistor Type	2 PNP (Dual)
Current - Collector (Ic) (Max)	50mA
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	250mV @ 100µA, 1mA
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 1mA, 5V
Power - Max	350mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-78-6 Metal Can
Supplier Device Package	TO-78-6
