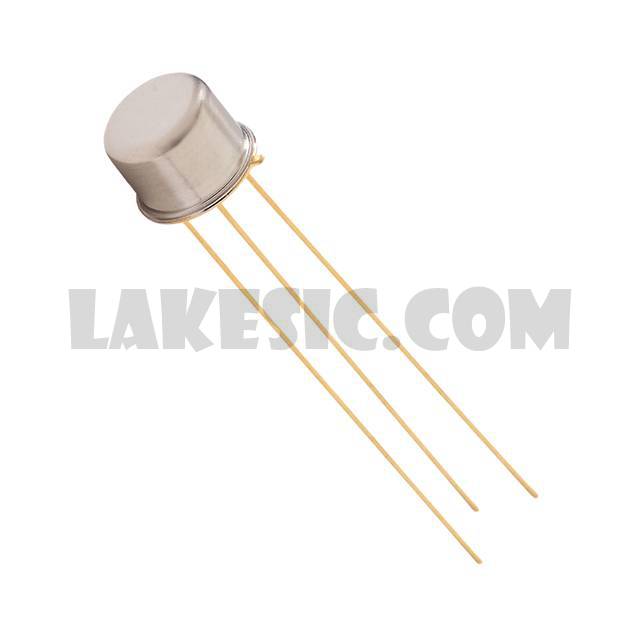

JANTXV2N5154L

Part NumberJANTXV2N5154L

ManufacturerMicrosemi Corporation

DescriptionTRANS NPN 80V 2A TO5

Datasheet2N5152(L,U3) 2N5154(L,U3)

Package / CaseTO-205AA, TO-5-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 2A 1W Through Hole TO-5

To learn about the specification of JANTXV2N5154L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTXV2N5154L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTXV2N5154L.
We are offering JANTXV2N5154L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTXV2N5154L - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N5152(L,U3) 2N5154(L,U3)

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/544

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Transistor Type

NPN

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

1.5V @ 500mA, 5A

Current - Collector Cutoff (Max)

50µA

DC Current Gain (hFE) (Min) @ Ic, Vce

70 @ 2.5A, 5V

Power - Max

Frequency - Transition

Operating Temperature

-65°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-205AA, TO-5-3 Metal Can

Supplier Device Package

TO-5
