JANTXV2N5745

Part NumberJANTXV2N5745

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP 80V 20A TO-3

Datasheet2N4399,2N5745

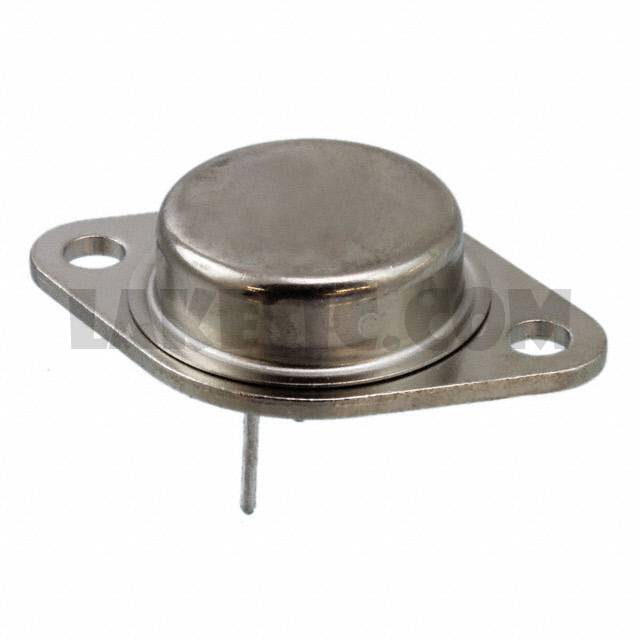

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 80V 20A 5W Through Hole TO-3

To learn about the specification of JANTXV2N5745, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTXV2N5745 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTXV2N5745.
We are offering JANTXV2N5745 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTXV2N5745 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N4399,2N5745

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/433

Packaging

Bulk

Part Status

Active

Transistor Type

PNP

Current - Collector (Ic) (Max)

20A

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

1V @ 1A, 10A

Current - Collector Cutoff (Max)

100µA

DC Current Gain (hFE) (Min) @ Ic, Vce

15 @ 10A, 2V

Power - Max

Frequency - Transition

Operating Temperature

-55°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-204AA, TO-3

Supplier Device Package

TO-3
