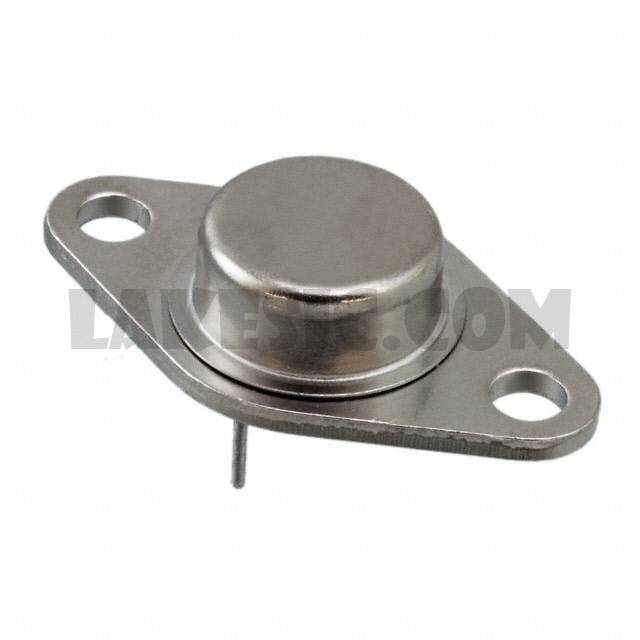

JANTXV2N6301

Part NumberJANTXV2N6301

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP DARL 80V 8A TO-66

Datasheet2N6300, 2N6301

Package / CaseTO-213AA, TO-66-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 80V 8A 75W Through Hole TO-66

To learn about the specification of JANTXV2N6301, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTXV2N6301 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTXV2N6301.
We are offering JANTXV2N6301 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTXV2N6301 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2N6300, 2N6301

Standard Package

Manufacturer

Microsemi Corporation

Series

Military, MIL-PRF-19500/539

Packaging

Bulk

Part Status

Active

Transistor Type

PNP - Darlington

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

3V @ 80mA, 8A

Current - Collector Cutoff (Max)

500µA

DC Current Gain (hFE) (Min) @ Ic, Vce

750 @ 4A, 3V

Power - Max

75W

Frequency - Transition

Operating Temperature

-55°C ~ 200°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-213AA, TO-66-2

Supplier Device Package

TO-66
