KSC2328AYTA

KSC2328AYTA

Part NumberKSC2328AYTA

ManufacturerON Semiconductor

DescriptionTRANS NPN 30V 2A TO-92L

DatasheetKSC2328A

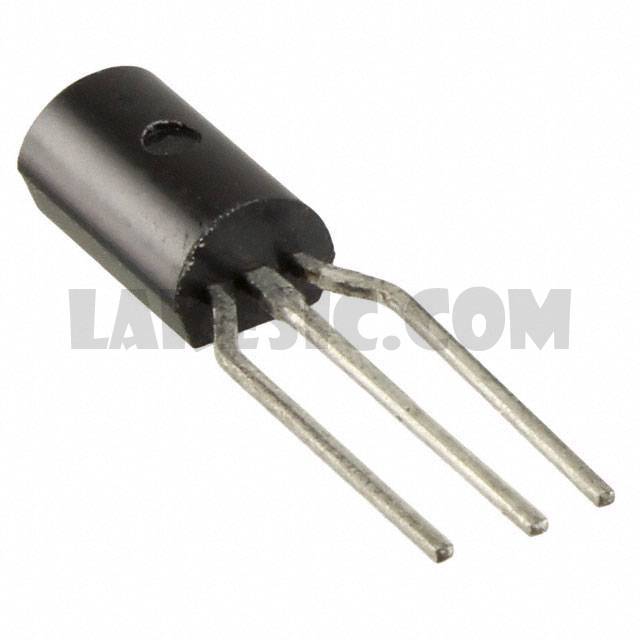

Package / CaseTO-226-3, TO-92-3 Long Body (Formed Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 30V 2A 120MHz 1W Through Hole TO-92-3

To learn about the specification of KSC2328AYTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add KSC2328AYTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of KSC2328AYTA.
We are offering KSC2328AYTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

KSC2328AYTA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	KSC2328A
Standard Package	2000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Box (TB)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	2A
Voltage - Collector Emitter Breakdown (Max)	30V
Vce Saturation (Max) @ Ib, Ic	2V @ 30mA, 1.5A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	160 @ 500mA, 2V
Power - Max	1W
Frequency - Transition	120MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body (Formed Leads)
Supplier Device Package	TO-92-3
Base Part Number	KSC2328A
