KSH50TF

KSH50TF

Part NumberKSH50TF

ManufacturerON Semiconductor

DescriptionTRANS NPN 400V 1A DPAK

DatasheetKSH47/50

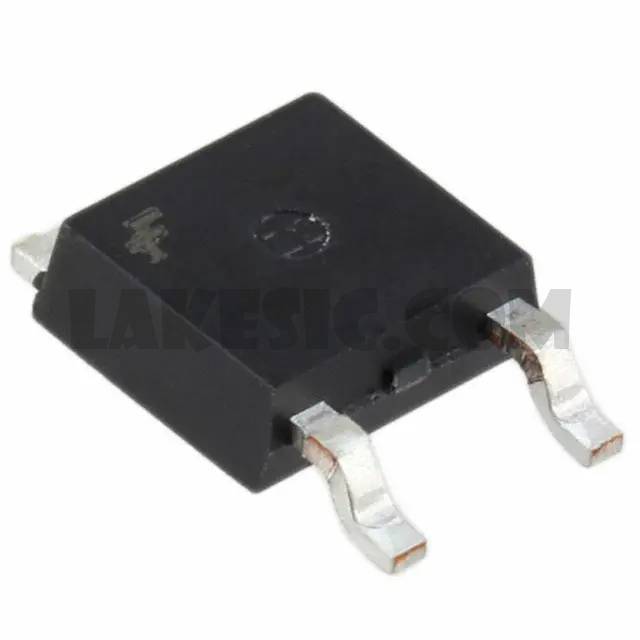

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 400V 1A 10MHz 1.56W Surface Mount TO-252, (D-Pak)

To learn about the specification of KSH50TF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add KSH50TF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of KSH50TF.
We are offering KSH50TF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

KSH50TF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	KSH47/50
Standard Package	2000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	400V
Vce Saturation (Max) @ Ib, Ic	1V @ 200mA, 1A
Current - Collector Cutoff (Max)	200µA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 300mA, 10V
Power - Max	1.56W
Frequency - Transition	10MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TO-252, (D-Pak)
Base Part Number	KSH50
