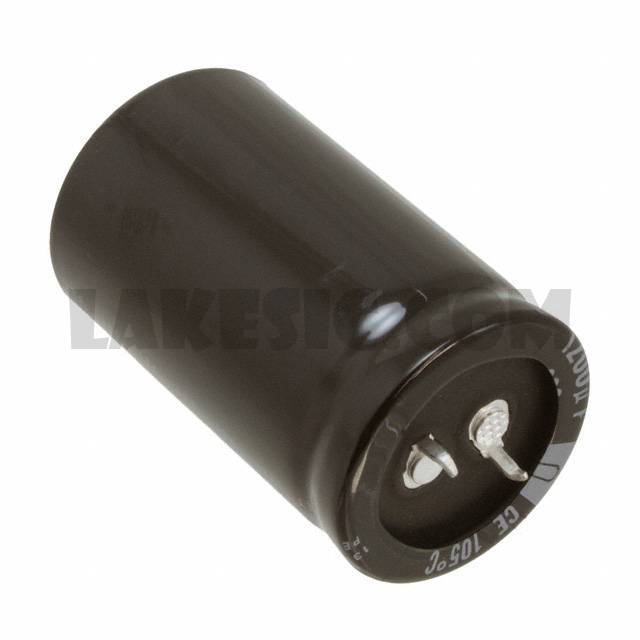

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LAQ Series, 692 Type
Standard Package	200
Manufacturer	Nichicon
Series	LAQ
Packaging	Bulk
Part Status	Active
Capacitance	1200µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.65A @ 120Hz
Ripple Current @ High Frequency	3.18A @ 10kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
