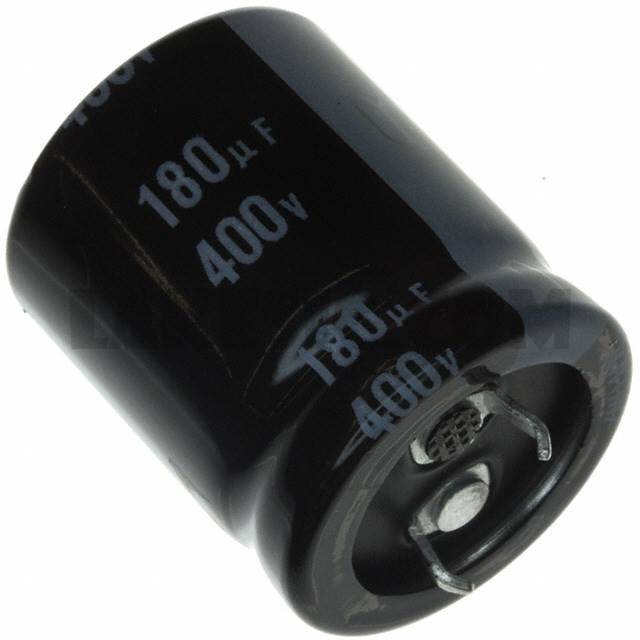

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LAR Series
Standard Package	250
Manufacturer	Nichicon
Series	LAR
Packaging	Bulk
Part Status	Active
Capacitance	180µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	870mA @ 120Hz
Ripple Current @ High Frequency	1.0005A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.378" (35.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LAR2G561MELC40	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2W561MELC50	Nichicon, 560µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2G391MELC30	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2G271MELZ50	Nichicon, 270µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2E561MELA35	Nichicon, 560µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2G391MELA50	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2E821MELB35	Nichicon, 820µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2W331MELC35	Nichicon, 330µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2W221MELB30	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2G271MELC25	Nichicon, 270µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2D102MELZ50	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View
LAR2E331MELZ30	Nichicon, 330µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LAR	View

LAR2W181MELA35

Part NumberLAR2W181MELA35
