Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LB3218T101K View all Specification
Standard Package	2000
Manufacturer	Taiyo Yuden
Series	LB
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	100µH
Tolerance	±10%
Current Rating (Amps)	140mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	2.4Ohm
Q @ Freq	-
Frequency - Self Resonant	8MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	796kHz
Mounting Type	Surface Mount
Package / Case	1207 (3218 Metric)
Supplier Device Package	1207 (3218 Metric)
Size / Dimension	0.126" L x 0.071" W (3.20mm x 1.80mm)
Height - Seated (Max)	0.079" (2.00mm)

LBR2012T101KV	Taiyo Yuden, 100µH Unshielded Wirewound Inductor 50mA 4Ohm 0805 (2012 Metric), LB, R Type	View
LB2016T101K	Taiyo Yuden, 100µH Unshielded Wirewound Inductor 40mA 4.5Ohm 0806 (2016 Metric), LB	View
LBM2016T150J	Taiyo Yuden, 15µH Unshielded Wirewound Inductor 190mA 1.5Ohm 0806 (2016 Metric), LB, M Type	View
LBC3225T220KR	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 330mA 270mOhm 1210 (3225 Metric), LB, C Type	View
LBR2012T100K	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 150mA 360mOhm 0805 (2012 Metric), LB, R Type	View
LBM2016TR33J	Taiyo Yuden, 330nH Unshielded Wirewound Inductor 490mA 210mOhm 0806 (2016 Metric), LB, M Type	View
LB3218T470K	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 205mA 920mOhm 1207 (3218 Metric), LB	View
LBC2518T470M	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 165mA 1.9Ohm 1007 (2518 Metric), LB, C Type	View
LB2012T100MR	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 120mA 500mOhm 0805 (2012 Metric), LB	View
LBMF1608T220K	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 50mA 1Ohm 0603 (1608 Metric), LB, MF Type	View
LBC2518T150K	Taiyo Yuden, 15µH Unshielded Wirewound Inductor 285mA 650mOhm 1007 (2518 Metric), LB, C Type	View
LBC3225T3R3MR	Taiyo Yuden, 3.3µH Unshielded Wirewound Inductor 820mA 95mOhm 1210 (3225 Metric), LB, C Type	View

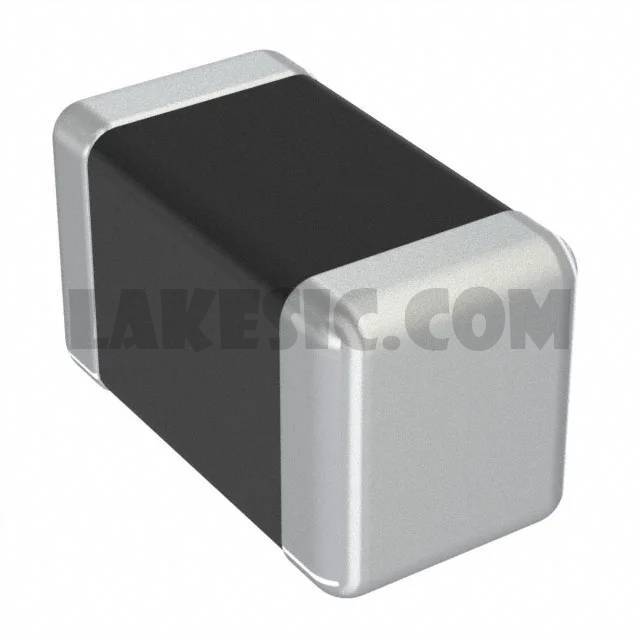

LB3218T101K
