Categories	Crystals, Oscillators, Resonators / Crystals
Datasheet	LFXTAL075672Reel Datasheet
Standard Package	1000
Manufacturer	IQD Frequency Products

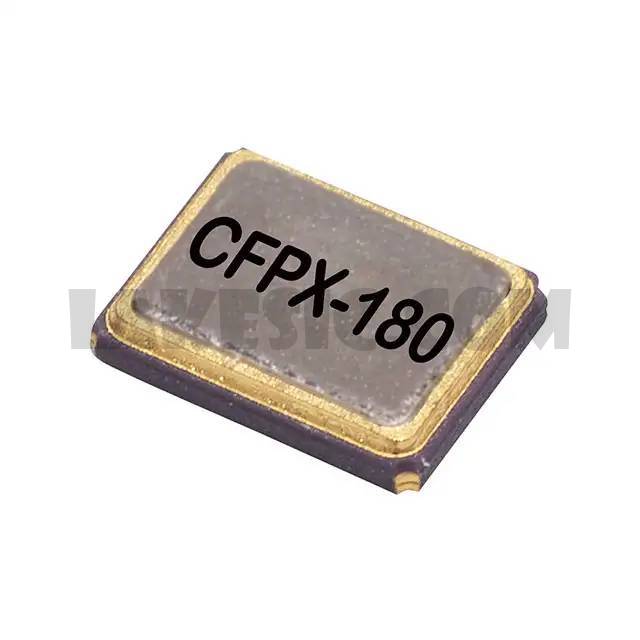

Series	CFPX-180
Packaging	Tape & Reel (TR)
Part Status	Active
Type	MHz Crystal
Frequency	12MHz
Frequency Stability	±30ppm
Frequency Tolerance	±30ppm
Load Capacitance	10pF
ESR (Equivalent Series Resistance)	120 Ohms
Operating Mode	Fundamental
Operating Temperature	-10°C ~ 60°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.031" (0.80mm)

LFXTAL069882REEL	IQD Frequency Products, 12MHz ±30ppm Crystal 10pF 100 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL035266REEL	IQD Frequency Products, 24MHz ±50ppm Crystal 16pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL035265REEL	IQD Frequency Products, 20MHz ±50ppm Crystal 16pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL072787REEL	IQD Frequency Products, 50MHz ±20ppm Crystal 18pF 35 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL055297REEL	IQD Frequency Products, 13MHz ±50ppm Crystal 18pF 120 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL064703REEL	IQD Frequency Products, 24MHz ±50ppm Crystal 18pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL055299REEL	IQD Frequency Products, 25MHz ±20ppm Crystal 18pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL055951REEL	IQD Frequency Products, 16MHz ±30ppm Crystal 18pF 70 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL059643REEL	IQD Frequency Products, 26MHz ±20ppm Crystal 18pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL061673REEL	IQD Frequency Products, 24MHz ±20ppm Crystal 12pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL035267REEL	IQD Frequency Products, 24.576MHz ±50ppm Crystal 16pF 50 Ohms 4-SMD, No Lead, CFPX-180	View
LFXTAL069377REEL	IQD Frequency Products, 32MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead, CFPX-180	View

LFXTAL075672REEL

Part NumberLFXTAL075672REEL
