Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGG Series
Standard Package	200
Manufacturer	Nichicon
Series	LGG
Packaging	Bulk
Part Status	Active
Capacitance	1200µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.3A @ 120Hz
Ripple Current @ High Frequency	3.45A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGG2E152MELC40	Nichicon, 1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2G181MELA25	Nichicon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2G391MELA45	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D272MELC45	Nichicon, 2700µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E122MELB45	Nichicon, 1200µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D681MELZ35	Nichicon, 680µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2Z102MELZ45	Nichicon, 1000µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D122MELB35	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2C222MELC35	Nichicon, 2200µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D561MELA25	Nichicon, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2P391MELZ30	Nichicon, 390µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2Z272MELC45	Nichicon, 2700µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View

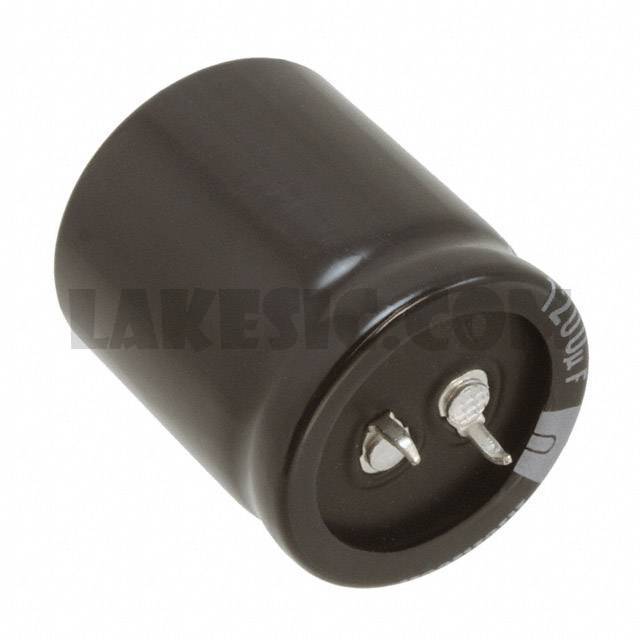

LGG2D122MELB35

Part NumberLGG2D122MELB35
