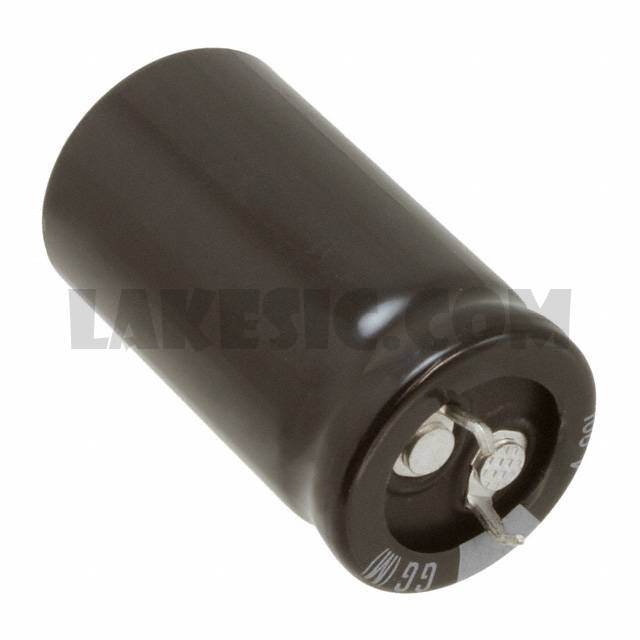

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGG Series
Standard Package	250
Manufacturer	Nichicon
Series	LGG
Packaging	Bulk
Part Status	Active
Capacitance	270µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1A @ 120Hz
Ripple Current @ High Frequency	1.43A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGG2W271MELA40	Nichicon, 270µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E561MELZ40	Nichicon, 560µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E122MELB45	Nichicon, 1200µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E152MELC40	Nichicon, 1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E152MELB50	Nichicon, 1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2P821MELC25	Nichicon, 820µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2P122MELB40	Nichicon, 1200µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGGW6391MELA50	Nichicon, 390µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2C102MELA35	Nichicon, 1000µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D102MELB30	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2G391MELC30	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2C102MELB25	Nichicon, 1000µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View

LGG2G271MELZ40

Part NumberLGG2G271MELZ40
