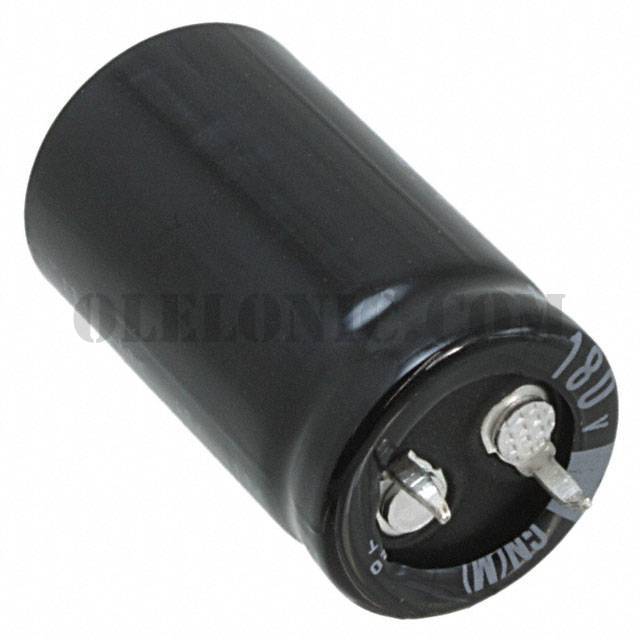

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGN Series
Standard Package	250
Manufacturer	Nichicon
Series	LGN
Packaging	Bulk
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.5A @ 120Hz
Ripple Current @ High Frequency	2.25A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
