Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGN Series
Standard Package	250
Manufacturer	Nichicon
Series	LGN
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	690mA @ 120Hz
Ripple Current @ High Frequency	986.7mA @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

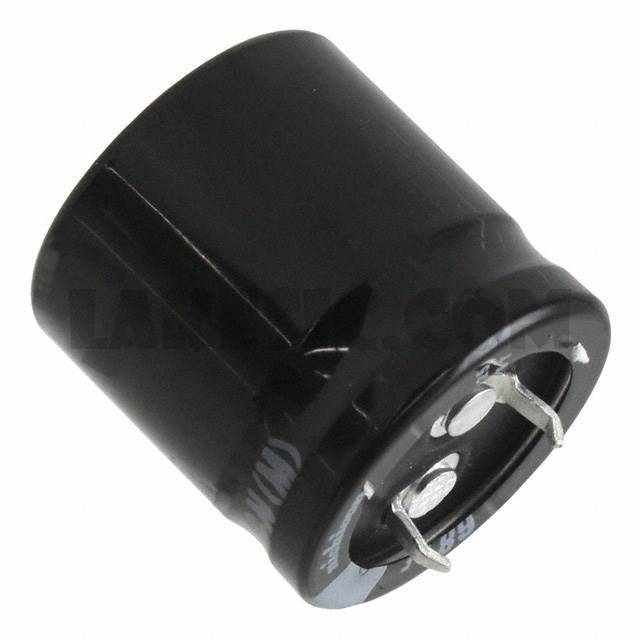

Package / Case	Radial, Can - Snap-In

LGN2C102MELA35	Nichicon, 1000µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2E681MELA40	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2P102MELC30	Nichicon, 1000µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2Z182MELC35	Nichicon, 1800µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2X101MELB40	Nichicon, 100µF 600V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGN	View
LGN2E821MELA45	Nichicon, 820µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2W271MELC30	Nichicon, 270µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2D102MELC25	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGNW6221MELA35	Nichicon, 220µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2D122MELA50	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2P561MELA35	Nichicon, 560µF 220V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2Z222MELB50	Nichicon, 2200µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View

LGN2W101MELA25

Part NumberLGN2W101MELA25
