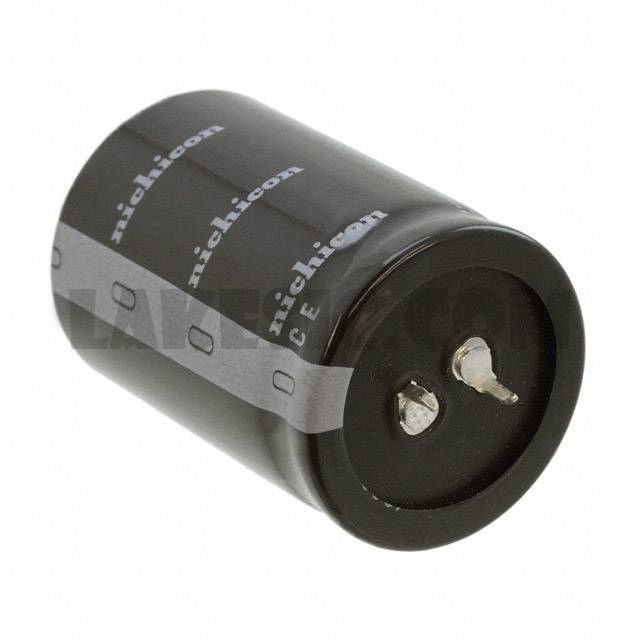

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGN Series
Standard Package	200
Manufacturer	Nichicon
Series	LGN
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	420V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.2A @ 120Hz
Ripple Current @ High Frequency	3.003A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGN2W121MELZ35	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2D561MELY40	Nichicon, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2G181MELA30	Nichicon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2W331MELC35	Nichicon, 330µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2E681MELB30	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2D102MELB30	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2G271MELA40	Nichicon, 270µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2V331MELB30	Nichicon, 330µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2W271MELC30	Nichicon, 270µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2W331MELB40	Nichicon, 330µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2E471MELB25	Nichicon, 470µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View
LGN2C122MELB30	Nichicon, 1200µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGN	View

LGNW6681MELC50

Part NumberLGNW6681MELC50
