Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGR Series
Standard Package	250
Manufacturer	Nichicon
Series	LGR
Packaging	Bulk
Part Status	Active
Capacitance	180µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	900mA @ 120Hz
Ripple Current @ High Frequency	3A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

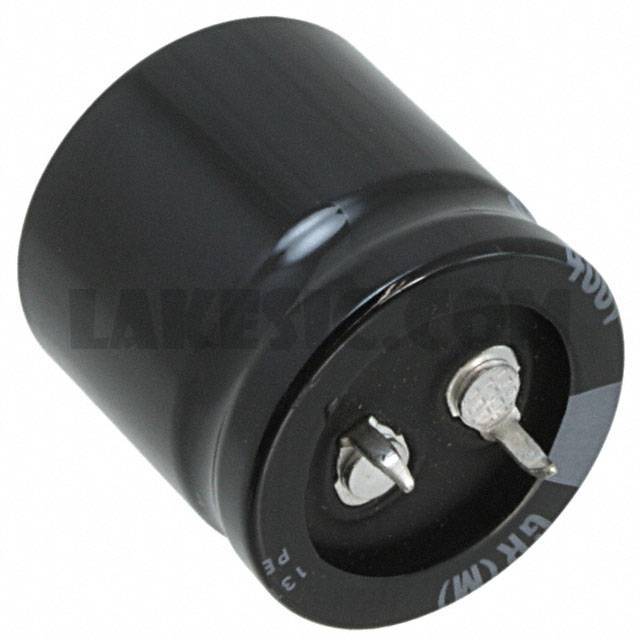

Package / Case	Radial, Can - Snap-In

LGR2W680MELZ40	Nichicon, 68µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D331MELA25	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G121MELB25	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W221MELB50	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W680MELA30	Nichicon, 68µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G471MELC50	Nichicon, 470µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W331MELC50	Nichicon, 330µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D561MELB30	Nichicon, 560µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2G331MELB50	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2D102MELB45	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W151MELA50	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View
LGR2W560MELZ35	Nichicon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 10000 Hrs @ 105°C, LGR	View

LGR2E181MELA25

Part NumberLGR2E181MELA25
