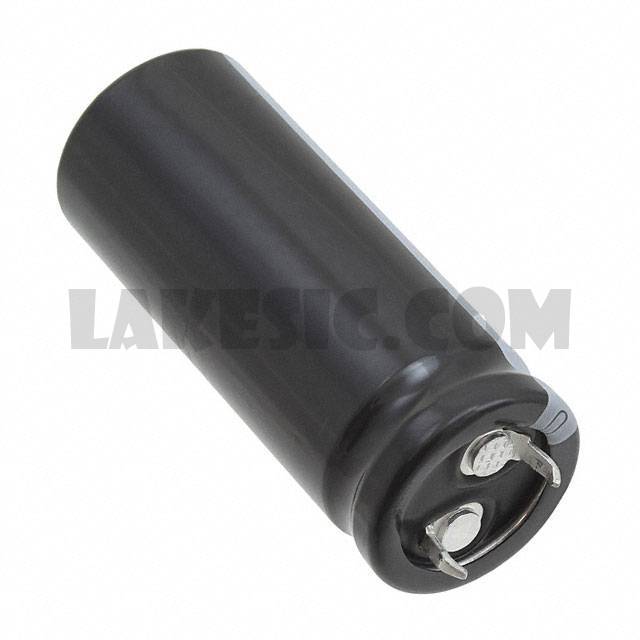

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGU Series
Standard Package	250
Manufacturer	Nichicon
Series	LGU
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	315V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1A @ 120Hz
Ripple Current @ High Frequency	1.43A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LGU1C273MELC	Nichicon, 27000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2W391MELC	Nichicon, 390µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2G391MELB	Nichicon, 390µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2A122MELZ	Nichicon, 1200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2F221MELB	Nichicon, 220µF 315V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGUW6221MELB	Nichicon, 220µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU1C153MELB	Nichicon, 15000µF 16V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2F271MELB	Nichicon, 270µF 315V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU1K332MELC	Nichicon, 3300µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2G221MELZ	Nichicon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2Z102MELC	Nichicon, 1000µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View
LGU2C821MELZ	Nichicon, 820µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LGU	View

LGU2F221MELY

Part NumberLGU2F221MELY
