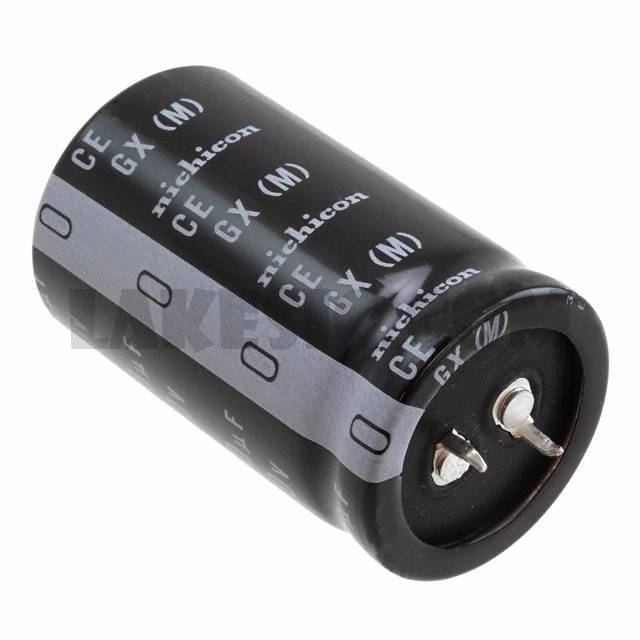

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGX Series
Standard Package	200
Manufacturer	Nichicon
Series	LGX
Packaging	Bulk
Part Status	Active
Capacitance	1200µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.68A @ 120Hz
Ripple Current @ High Frequency	4.02A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
