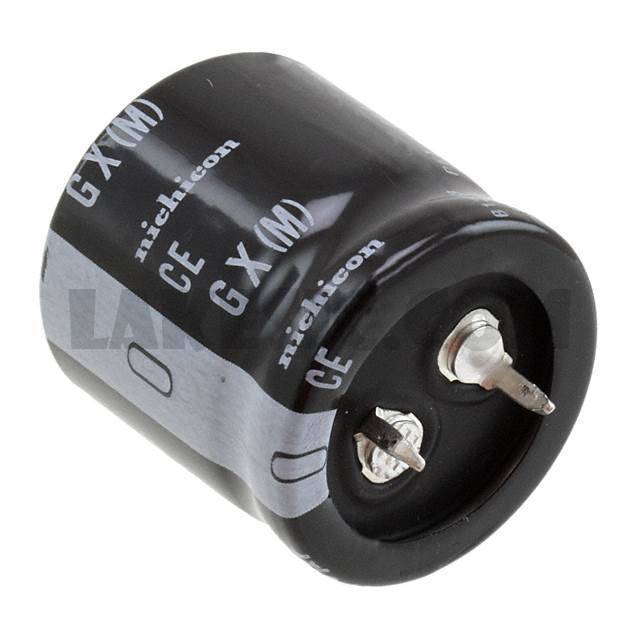

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGX Series
Standard Package	250
Manufacturer	Nichicon
Series	LGX
Packaging	Bulk
Part Status	Active
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	500V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	650mA @ 120Hz
Ripple Current @ High Frequency	929.5mA @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
