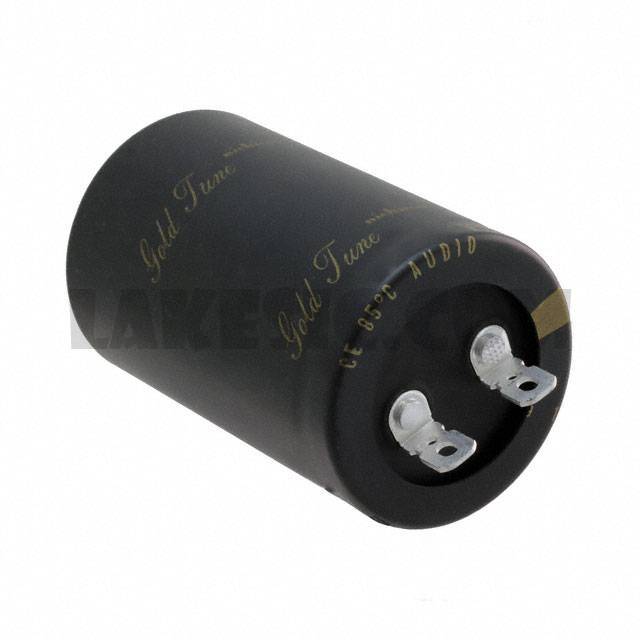

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LKG Series
Standard Package	50
Manufacturer	Nichicon
Series	LKG
Packaging	Bulk
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	4.9A @ 120Hz
Lead Spacing	0.551" (14.00mm)
Size / Dimension	1.575" Dia (40.00mm)
Height - Seated (Max)	3.268" (83.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Solder Lug

LKG1H332MESYAK	Nichicon, 3300µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1J102MESYBK	Nichicon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1E222MESYCK	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1H152MESZBK	Nichicon, 1500µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG2A222MESCCK	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1H102MESYCK	Nichicon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1K102MESZBK	Nichicon, 1000µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1H222MESCCK	Nichicon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1V222MESYBK	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1H222MESZBK	Nichicon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1K472MESCBK	Nichicon, 4700µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View
LKG1V562MESCBK	Nichicon, 5600µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C, LKG	View

LKG1J103MKN

Part NumberLKG1J103MKN
