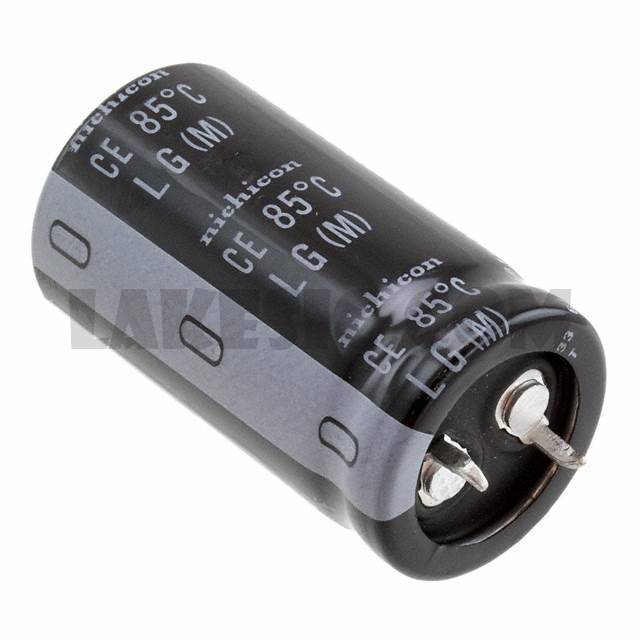

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LLG Series
Standard Package	250
Manufacturer	Nichicon
Series	LLG
Packaging	Bulk
Part Status	Active
Capacitance	820µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.49A @ 120Hz
Ripple Current @ High Frequency	3.735A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LLG2E681MELZ45	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2E152MELB50	Nichicon, 1500µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D122MELA40	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D182MELC35	Nichicon, 1800µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2C102MELZ40	Nichicon, 1000µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2C222MELB40	Nichicon, 2200µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2G681MELB45	Nichicon, 680µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2C152MELZ50	Nichicon, 1500µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D222MELC40	Nichicon, 2200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D102MELB30	Nichicon, 1000µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D182MELB40	Nichicon, 1800µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View
LLG2D272MELC45	Nichicon, 2700µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C, LLG	View

LLG2D821MELZ40

Part NumberLLG2D821MELZ40
