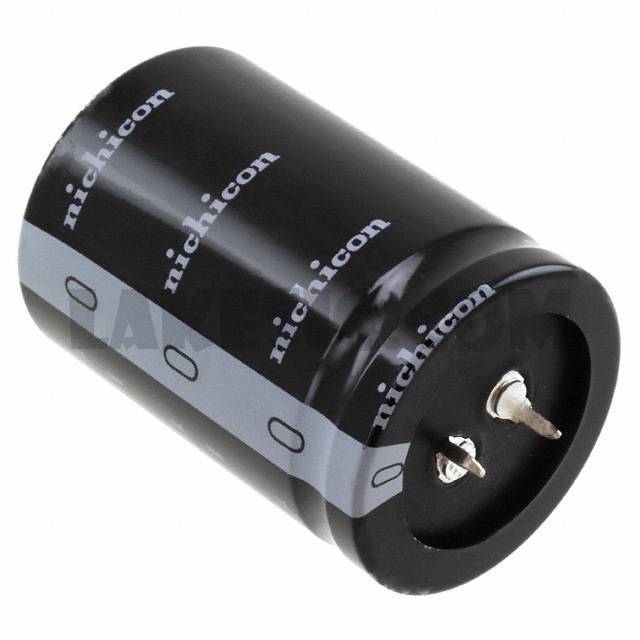

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LLS Series
Standard Package	200
Manufacturer	Nichicon
Series	LLS
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 85°C
Operating Temperature	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3.1A @ 120Hz
Ripple Current @ High Frequency	4.433A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.969" (50.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LLS2A222MELZ	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2D471MELZ	Nichicon, 470µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2A182MELZ	Nichicon, 1800µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2E681MELB	Nichicon, 680µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1V123MELB	Nichicon, 12000µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2W221MELB	Nichicon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2G331MELA	Nichicon, 330µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2G471MELB	Nichicon, 470µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1V183MELB	Nichicon, 18000µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS2D122MELB	Nichicon, 1200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1K222MELB	Nichicon, 2200µF 80V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View
LLS1V682MELA	Nichicon, 6800µF 35V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C, LLS	View

LLS2G681MELC

Part NumberLLS2G681MELC
