Home/Product Catalog/Capacitors / Aluminum Electrolytic Capacitors/ LNR1V224MSE

LNR1V224MSE

LNR1V224MSE

Part NumberLNR1V224MSE

ManufacturerNichicon

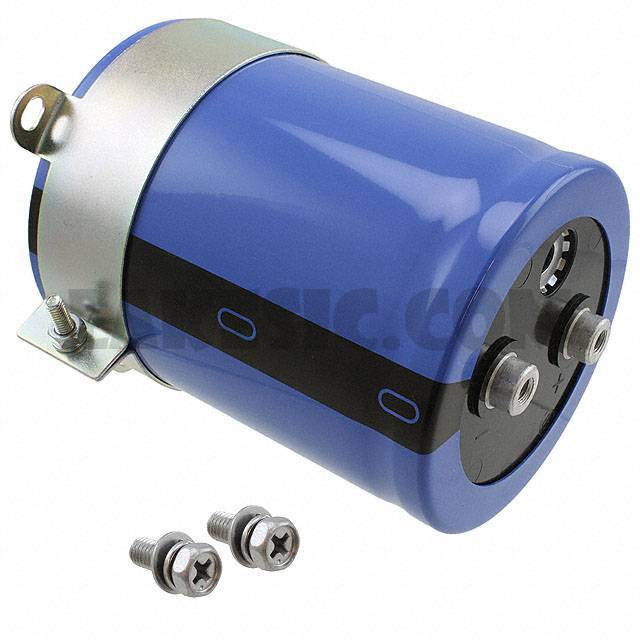

DescriptionCAP ALUM 220000UF 20% 35V SCREW

DatasheetLNR Series

Package / CaseRadial, Can - Screw Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220000µF 35V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C

To learn about the specification of LNR1V224MSE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LNR1V224MSE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LNR1V224MSE.
We are offering LNR1V224MSE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LNR1V224MSE - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LNR Series
Standard Package	5
Manufacturer	Nichicon
Series	LNR
Packaging	Bulk
Part Status	Active
Capacitance	220000µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	16.8A @ 120Hz
Ripple Current @ High Frequency	21.735A @ 10kHz
Lead Spacing	1.252" (31.80mm)
Size / Dimension	3.000" Dia (76.20mm)
Height - Seated (Max)	4.055" (103.00mm)
Surface Mount Land Size	-
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
