LQA20N200C

Part NumberLQA20N200C

ManufacturerPower Integrations

DescriptionDIODE ARRAY GP 200V 10A TO252

DatasheetLQA20T200C, LQA20N200C

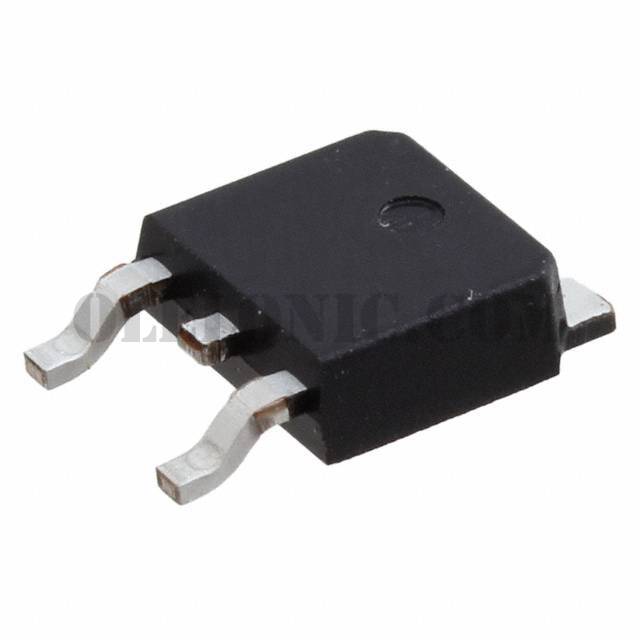

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 200V 10A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63

To learn about the specification of LQA20N200C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQA20N200C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQA20N200C.
We are offering LQA20N200C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQA20N200C - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	LQA20T200C, LQA20N200C
Standard Package	2500
Manufacturer	Power Integrations
Series	Qspeed™
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	10A
Voltage - Forward (Vf) (Max) @ If	1.15V @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	16ns
Current - Reverse Leakage @ Vr	500µA @ 200V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TO-252, (D-Pak)
