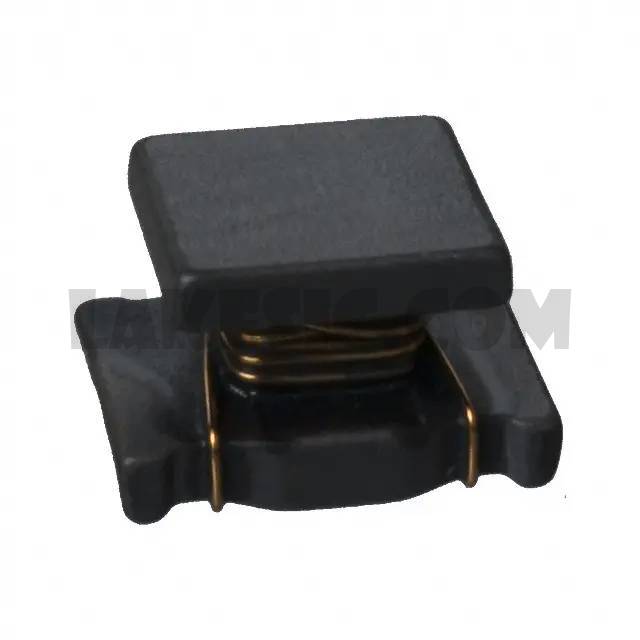

LQH43MN330K03L

Part NumberLQH43MN330K03L

To learn about the specification of LQH43MN330K03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH43MN330K03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH43MN330K03L.
We are offering LQH43MN330K03L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQH43MNyyyy03L Ref Sheet
Standard Package	500
Manufacturer	Murata Electronics North America
Series	LQH43
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	33µH
Tolerance	±10%
Current Rating (Amps)	270mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1.2Ohm Max
Q @ Freq	35 @ 1MHz
Frequency - Self Resonant	12MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
