LQH43NN121J03L

Part NumberLQH43NN121J03L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 120UH 150MA 3 OHM SMD

DatasheetLQH43NNyyyy03L Series Specification

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

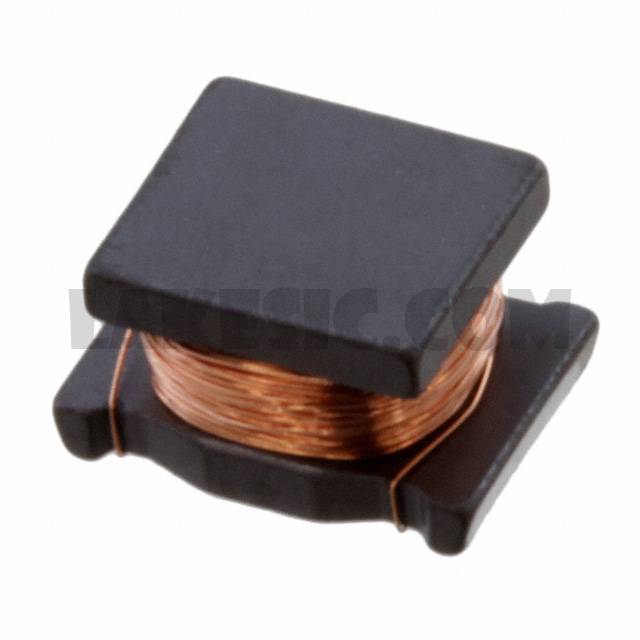

Detailed Description120µH Unshielded Wirewound Inductor 150mA 3Ohm Max 1812 (4532 Metric)

To learn about the specification of LQH43NN121J03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH43NN121J03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH43NN121J03L.
We are offering LQH43NN121J03L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQH43NN121J03L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQH43NNyyyy03L Series Specification
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQH43
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	120µH
Tolerance	±5%
Current Rating (Amps)	150mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	3Ohm Max
Q @ Freq	40 @ 796kHz
Frequency - Self Resonant	6.2MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812 (4532 Metric)
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
