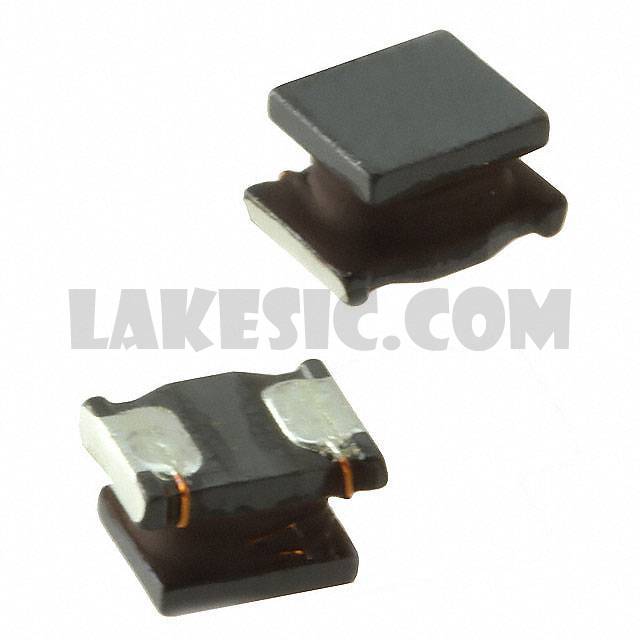

LQH43PN101M26L
LQH43PN101M26L
Part Number LQH43PN101M26L
Description FIXED IND 100UH 320MA 1.85 OHM
Package / Case 1812 (4532 Metric)
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 100µH Shielded Wirewound Inductor 320mA 1.85Ohm Max 1812 (4532 Metric)
To learn about the specification of LQH43PN101M26L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH43PN101M26L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH43PN101M26L.
We are offering LQH43PN101M26L for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
LQH43PN101M26L - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet LQH43PNyyyy26L Ref Sheet
Standard Package 1
Manufacturer Murata Electronics North America
Series LQH43
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100µH
Tolerance ±20%
Current Rating (Amps) 320mA
Current - Saturation 320mA
Shielding Shielded
DC Resistance (DCR) 1.85Ohm Max
Q @ Freq -
Frequency - Self Resonant 4MHz
Ratings -
Operating Temperature -40°C ~ 85°C
Inductance Frequency - Test 1MHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812 (4532 Metric)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.110" (2.80mm)
