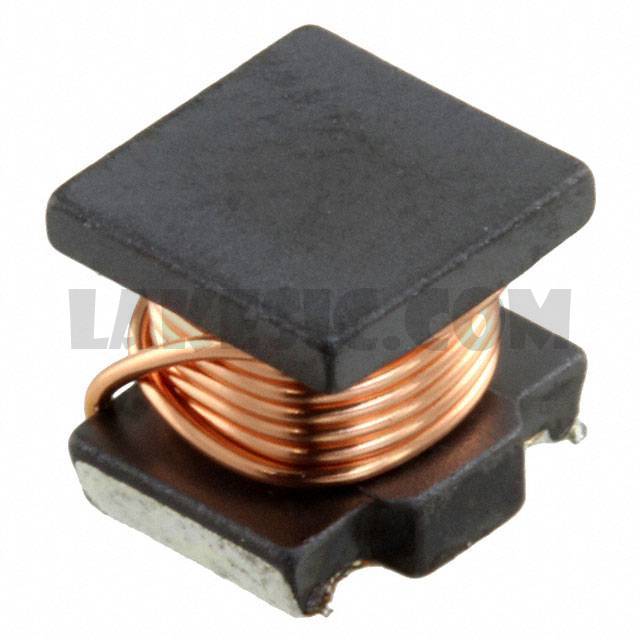

LQH55DN151M03L

Part NumberLQH55DN151M03L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 150UH 420MA 1.9 OHM

DatasheetLQH55DNyyyy03L Ref Spec

Package / Case2220 (5750 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description150µH Unshielded Wirewound Inductor 420mA 2.66Ohm Max 2220 (5750 Metric)

To learn about the specification of LQH55DN151M03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQH55DN151M03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQH55DN151M03L.
We are offering LQH55DN151M03L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQH55DN151M03L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQH55DNyyyy03L Ref Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQH55
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	150µH
Tolerance	±20%
Current Rating (Amps)	420mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	2.66Ohm Max
Q @ Freq	-
Frequency - Self Resonant	5MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	2220 (5750 Metric)
Supplier Device Package	2220 (5650 Metric)
Size / Dimension	0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max)	0.197" (5.00mm)
